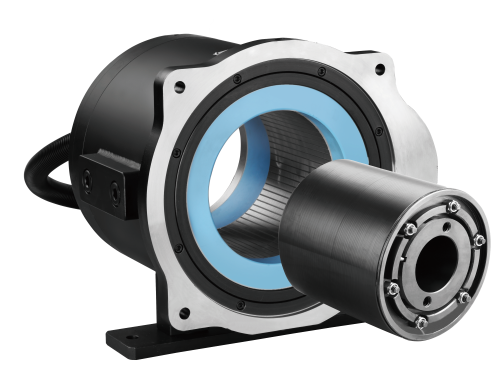

TK SeriesDirect Drive Servo Motor

l Power Range:3.2~800 KW

l Torque Range:3~120000 Nm

l Speed Range:0~30000 rpm

l Diameter Range:85~2000 mm

l Cooling:natural convection, fan cooled and liguid cooling

Features
High power density
The use of high-performance permanent magnet materials, high grade silicon steel sheet, advanced electromagnetic solutions, to achieve high speed and high torque and weak magnetic control ability, constant power range up to 10:1
High efficiency
Provides solutions conforming to GB30549, highest level, and IEC60034, highest IE5.Simple structure: no frame structure, suitable for integration into the equipment, strong adaptability, easy installation, easy maintenance
Simple structure
no frame structure, suitable for integration into the equipment, strong adaptability, easy installation, easy maintenance
Durable
the stator adopts vacuum epoxy dipping technology and super industry level insulation material to improve the protection level and heat dissipation performance of the motor, so that the motor is more durable.
Flexible customization
complete machine and no frame optional, provides a full range of platform based non-standard customization solutions for different application scenarios, the maximum diameter up to 45m.
Specifications
  • TK440

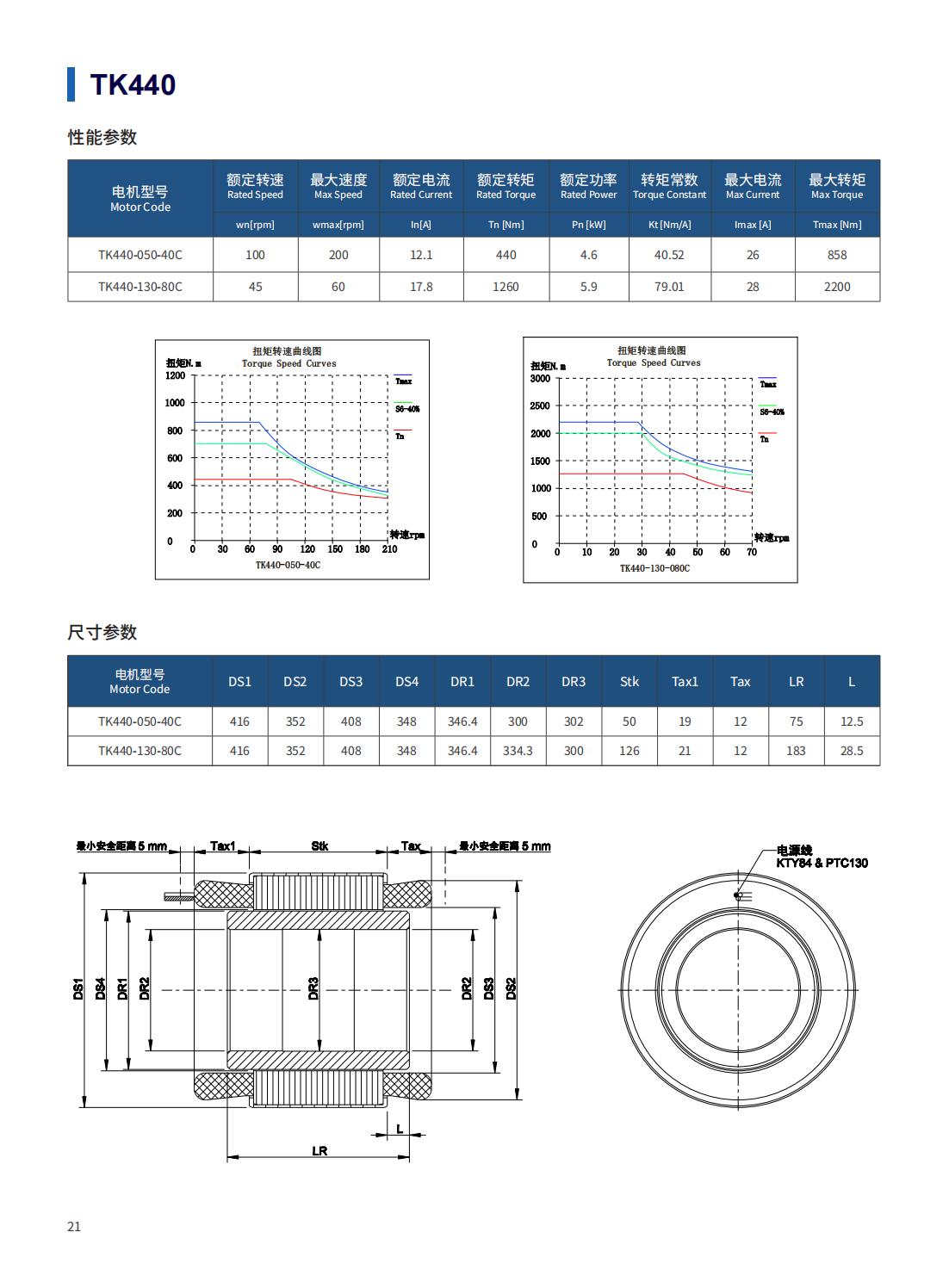

    TK440
  • TK230

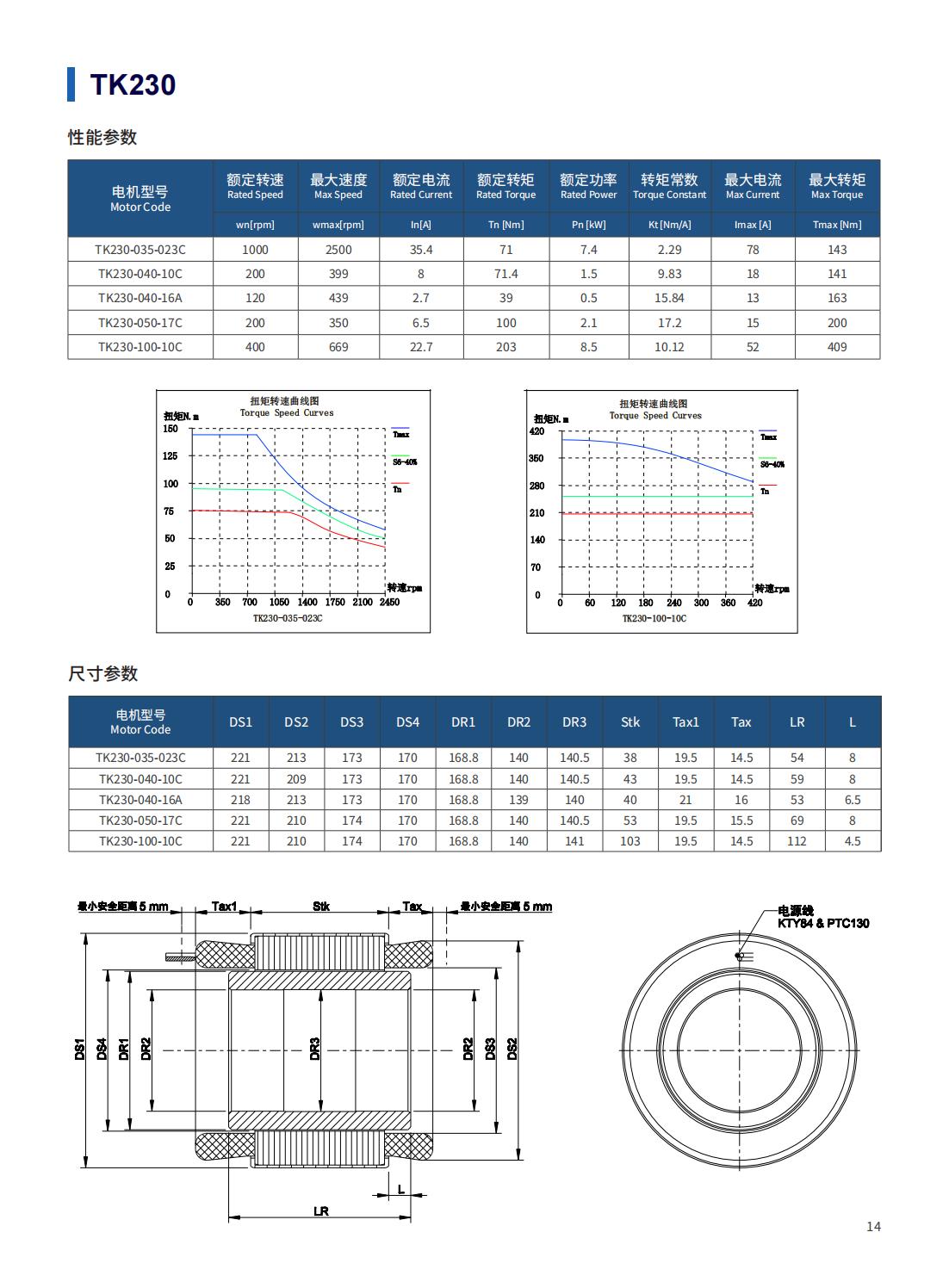

    TK230
  • TK240

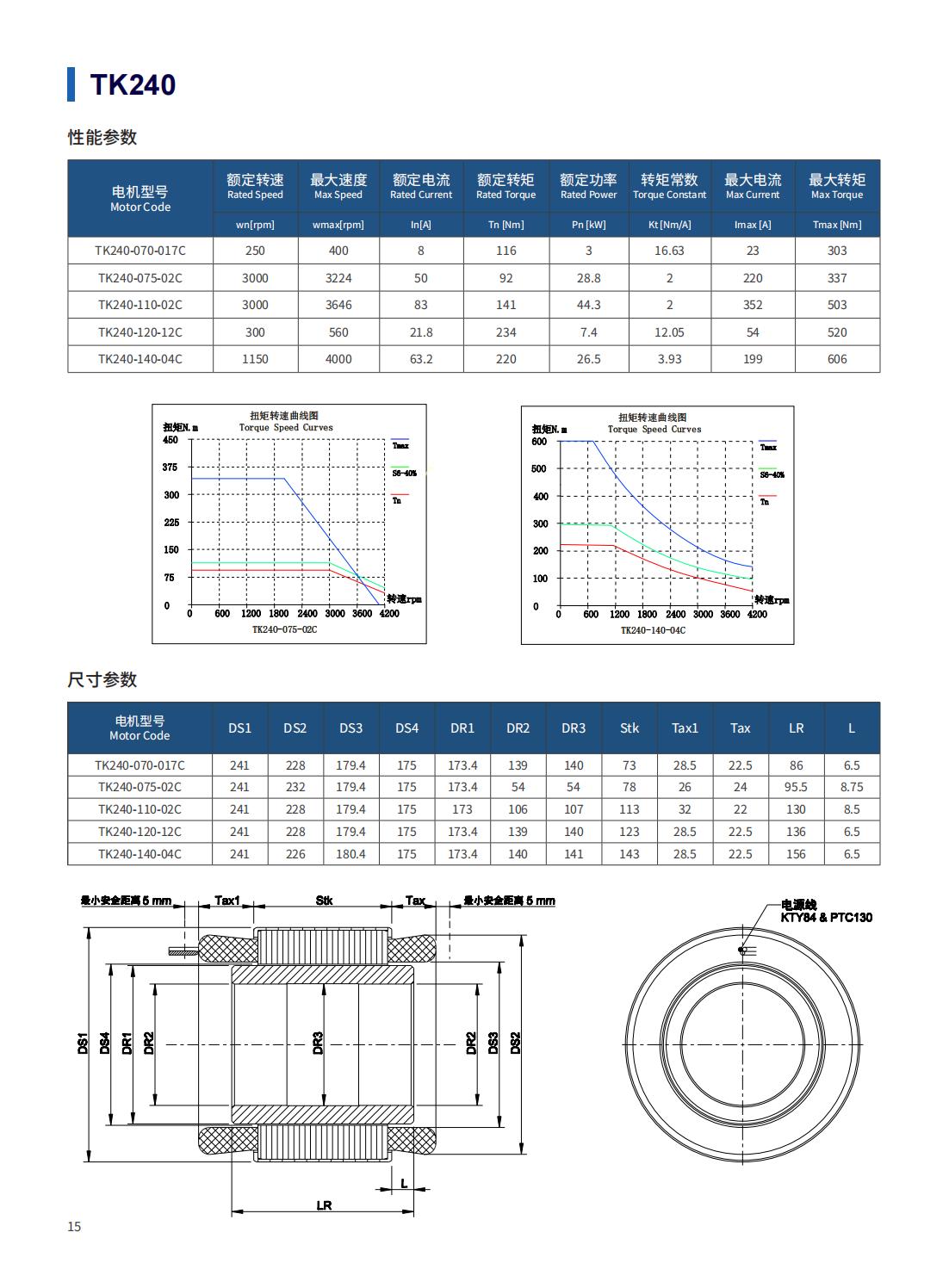

    TK240
  • TK270

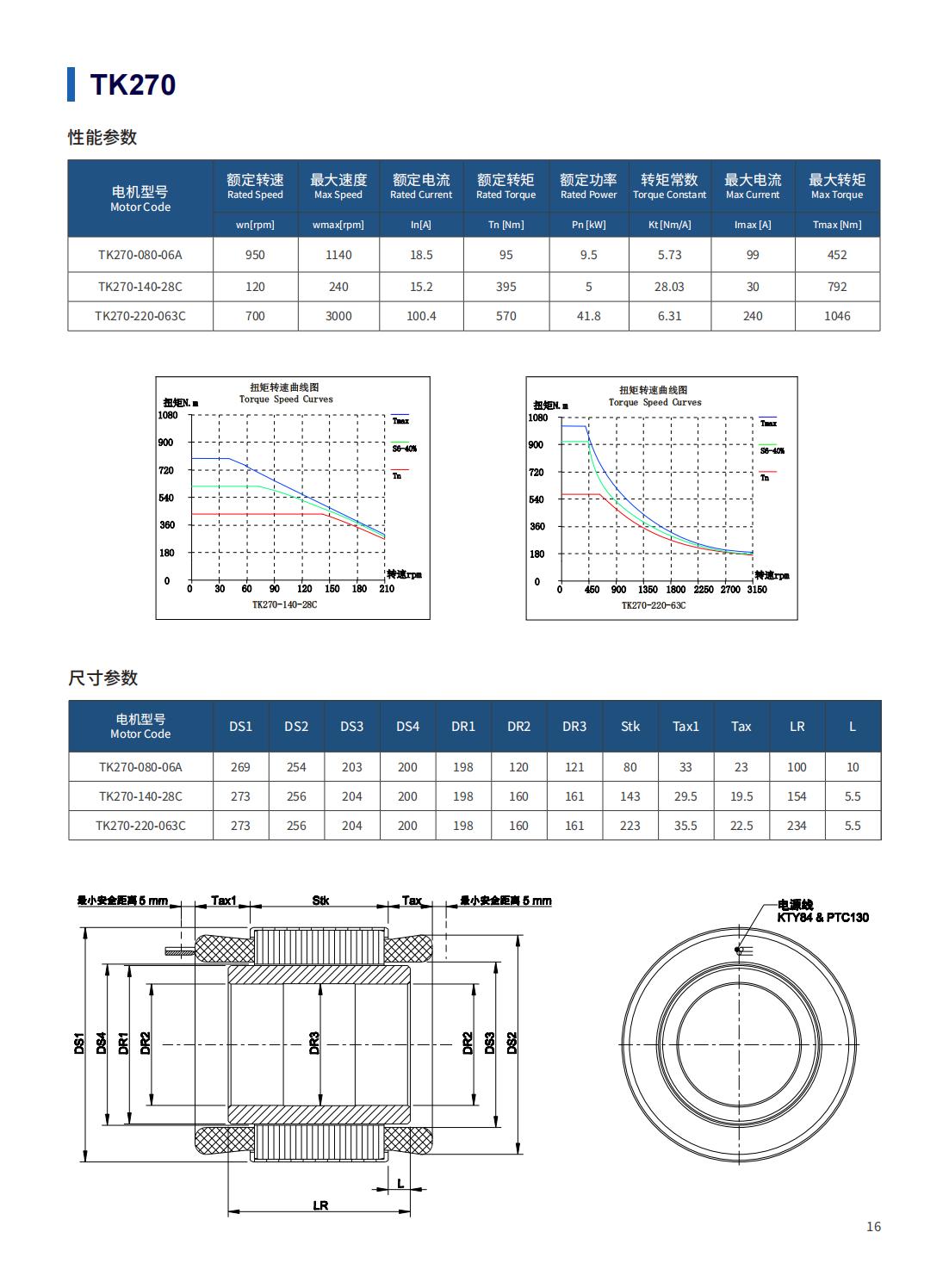

    TK270
  • TK310

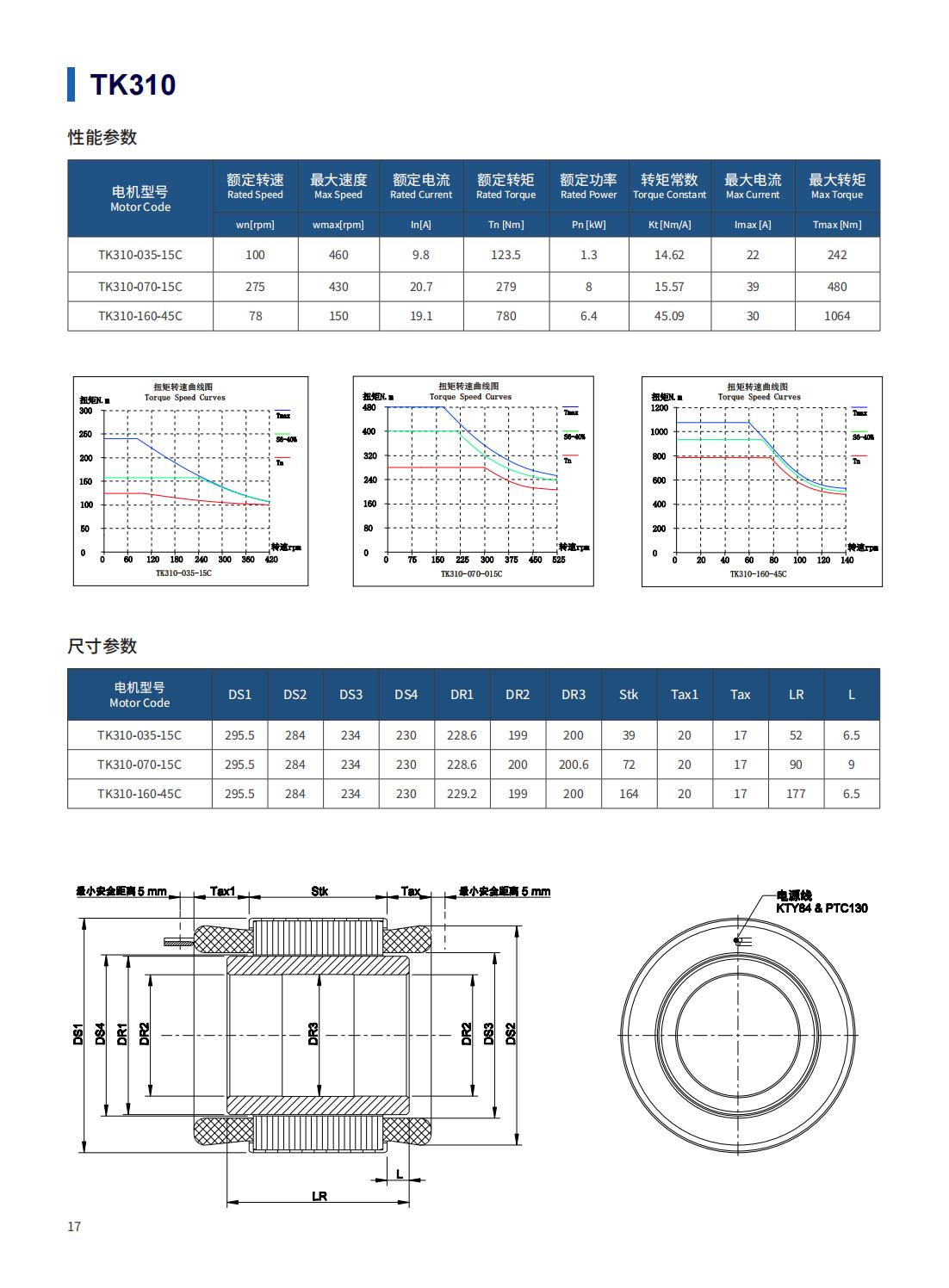

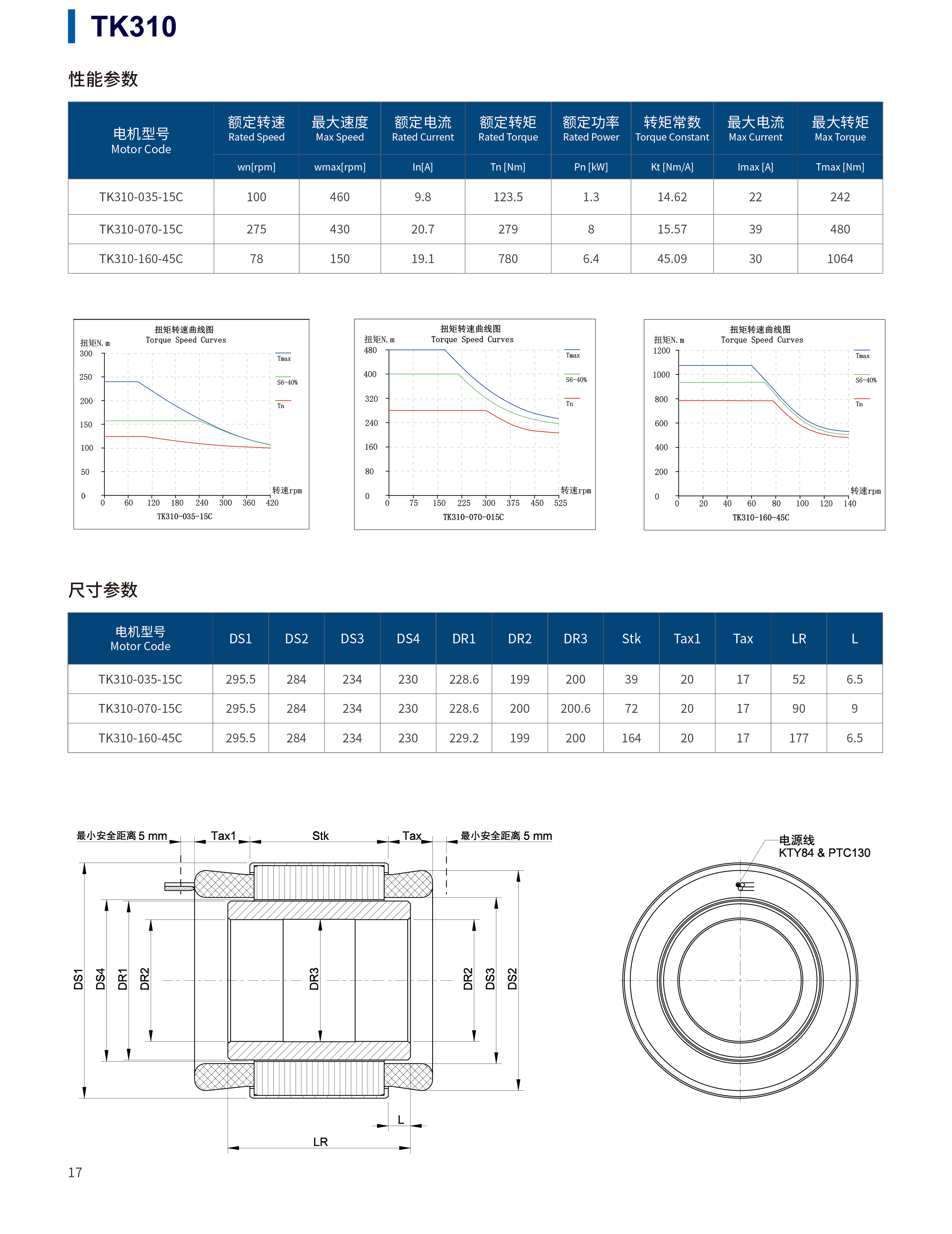

    TK310
  • TK340

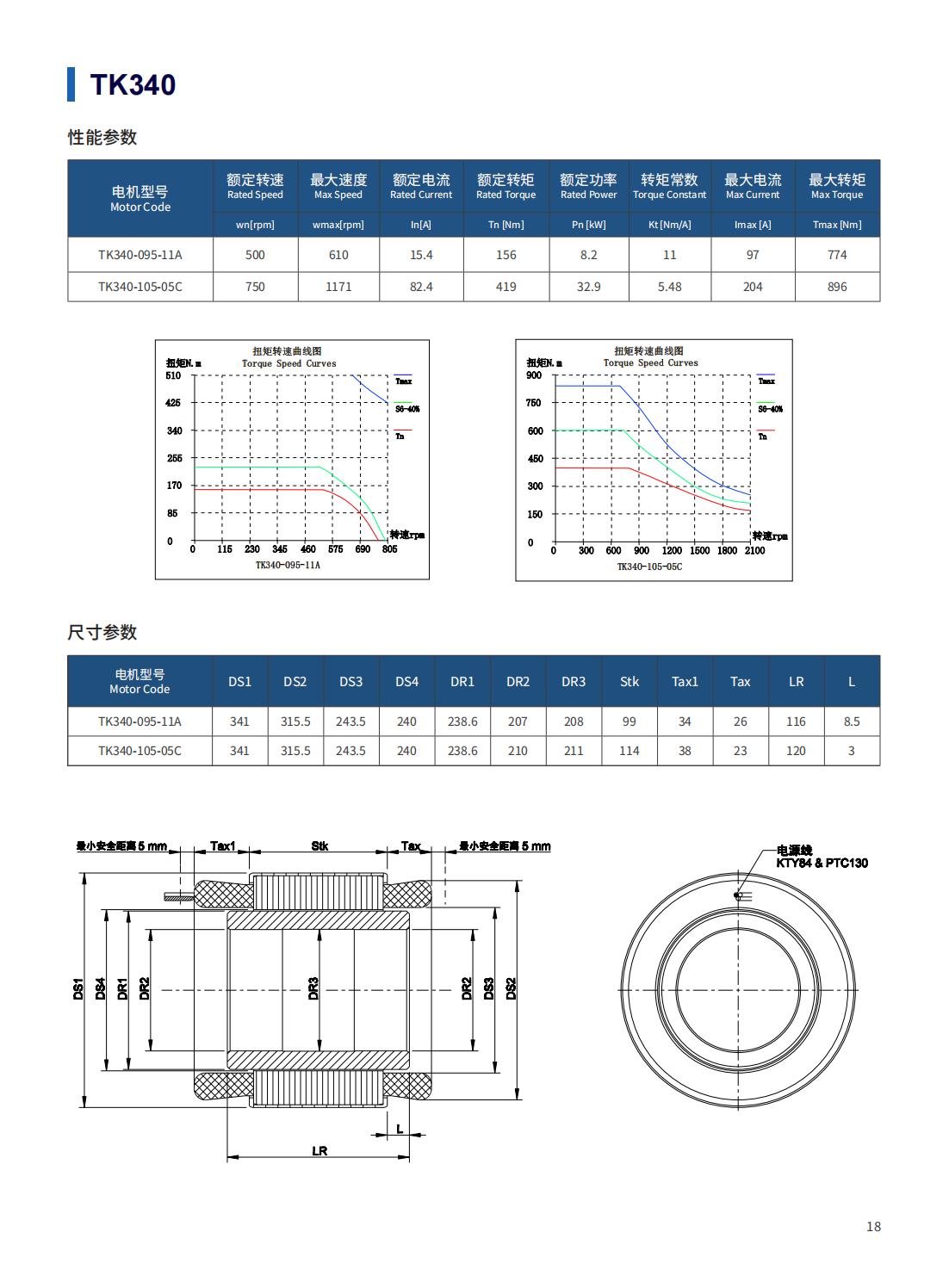

    TK340
  • TK360

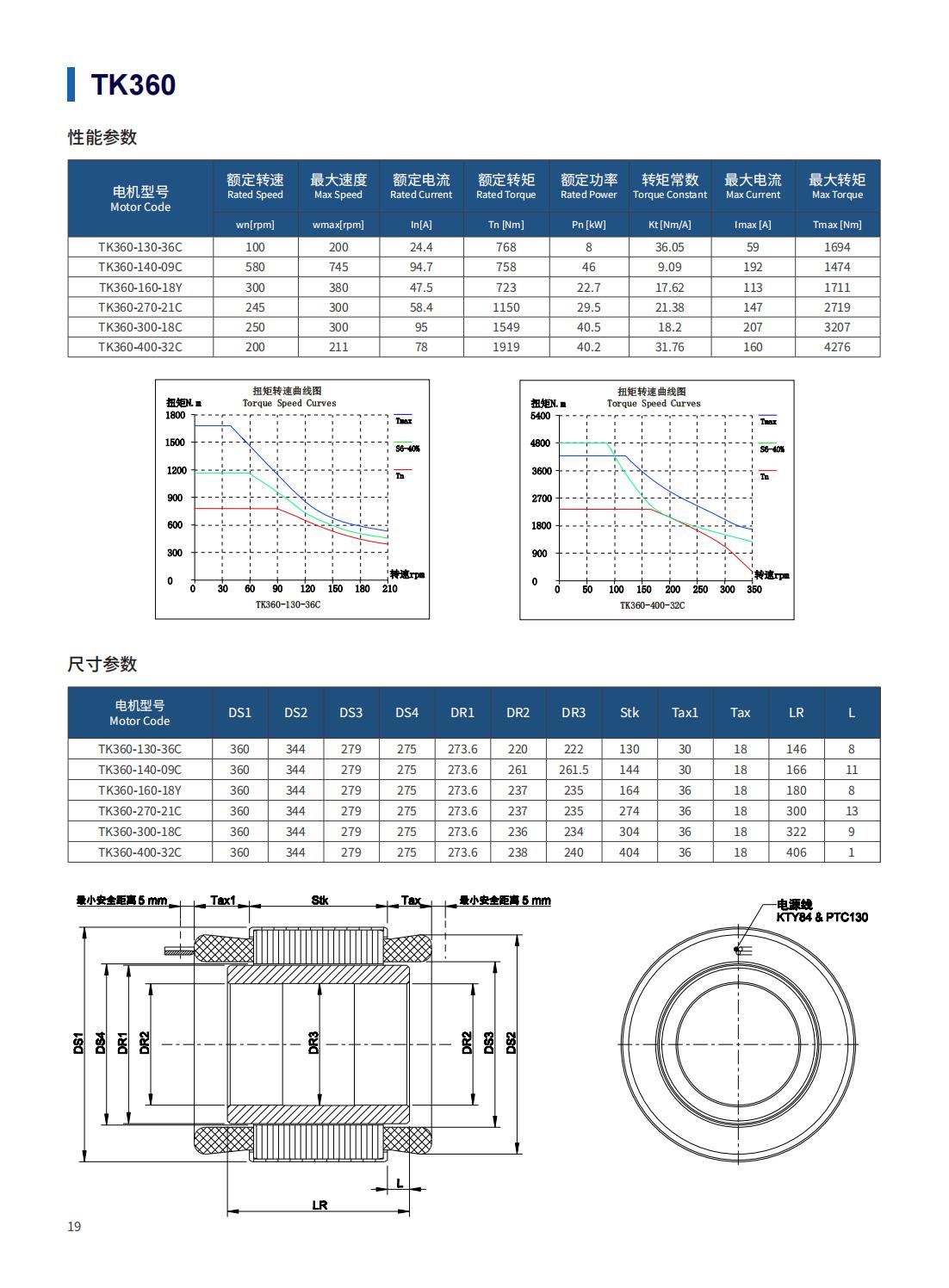

    TK360
  • TK188

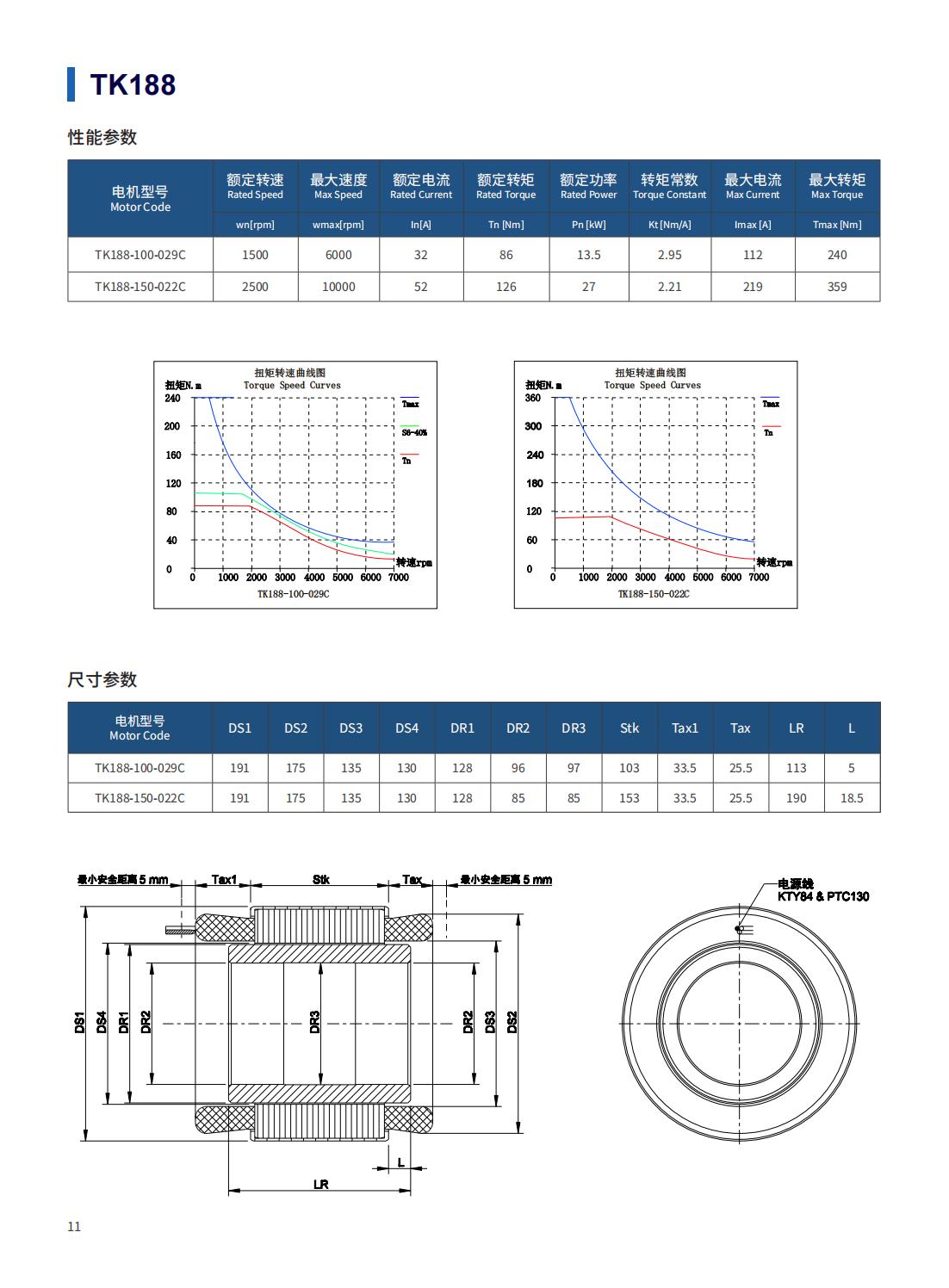

    TK188
  • TK570

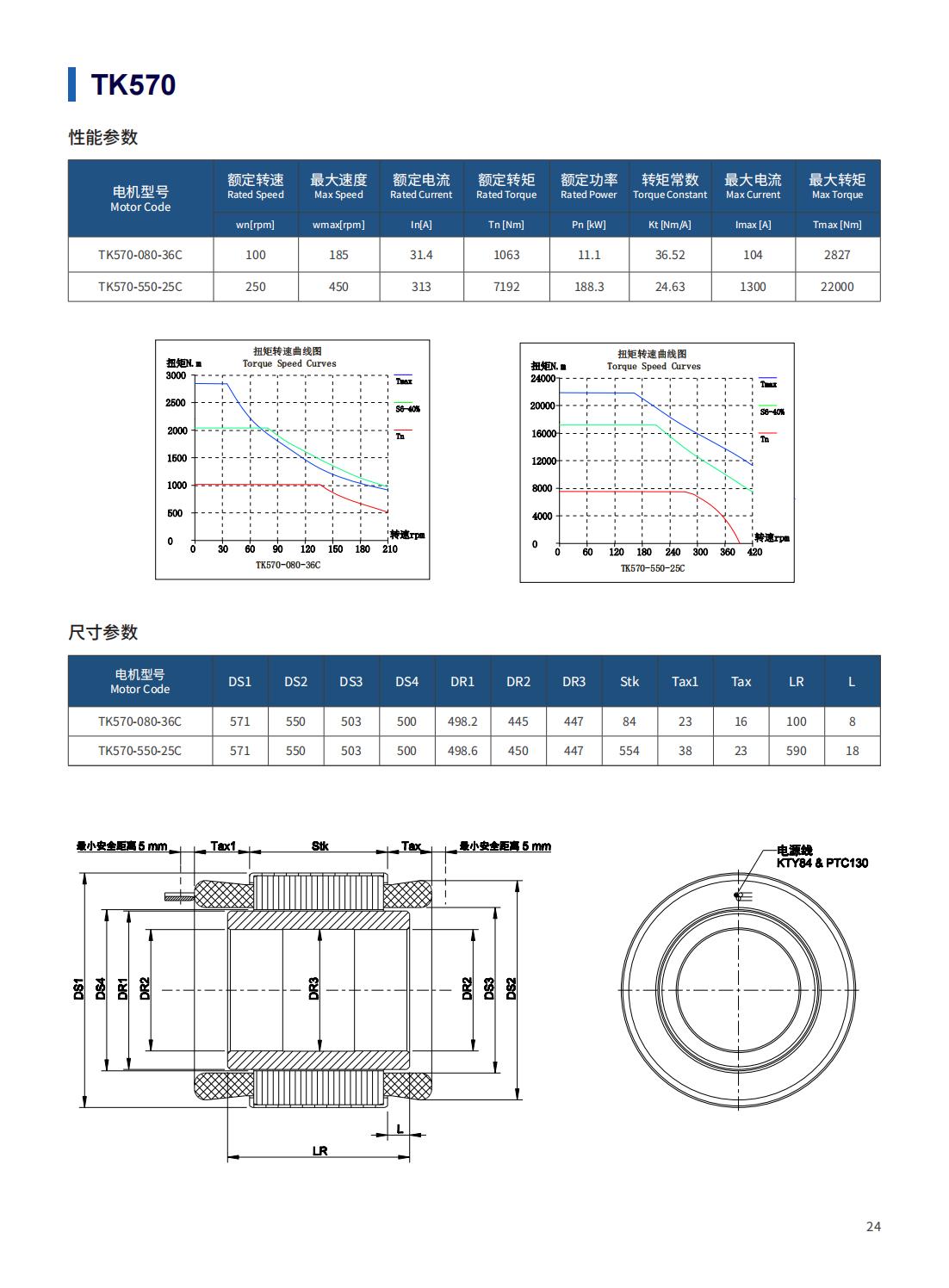

    TK570
  • TK450

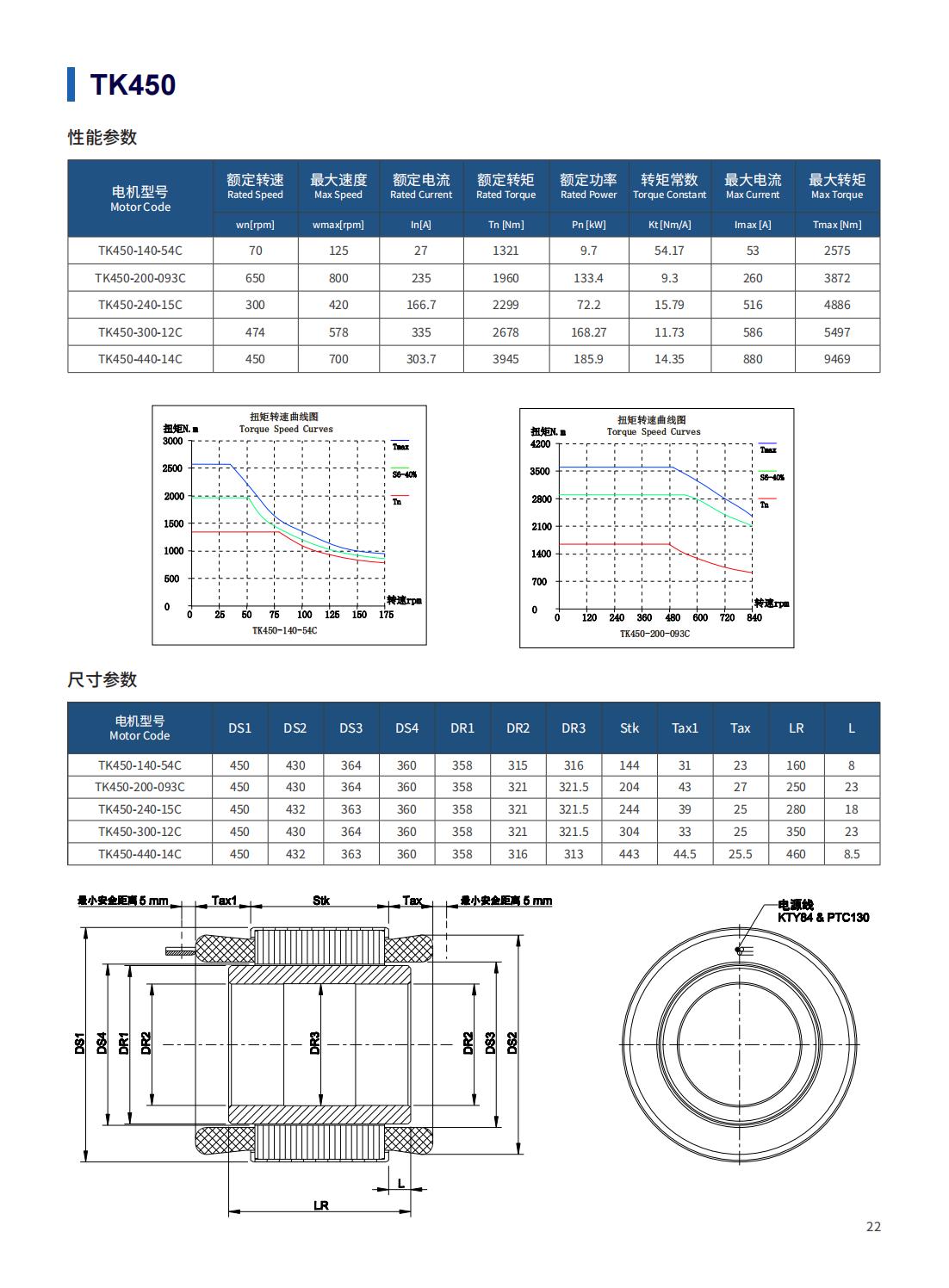

    TK450
  • TK440
    TK440
  • TK106

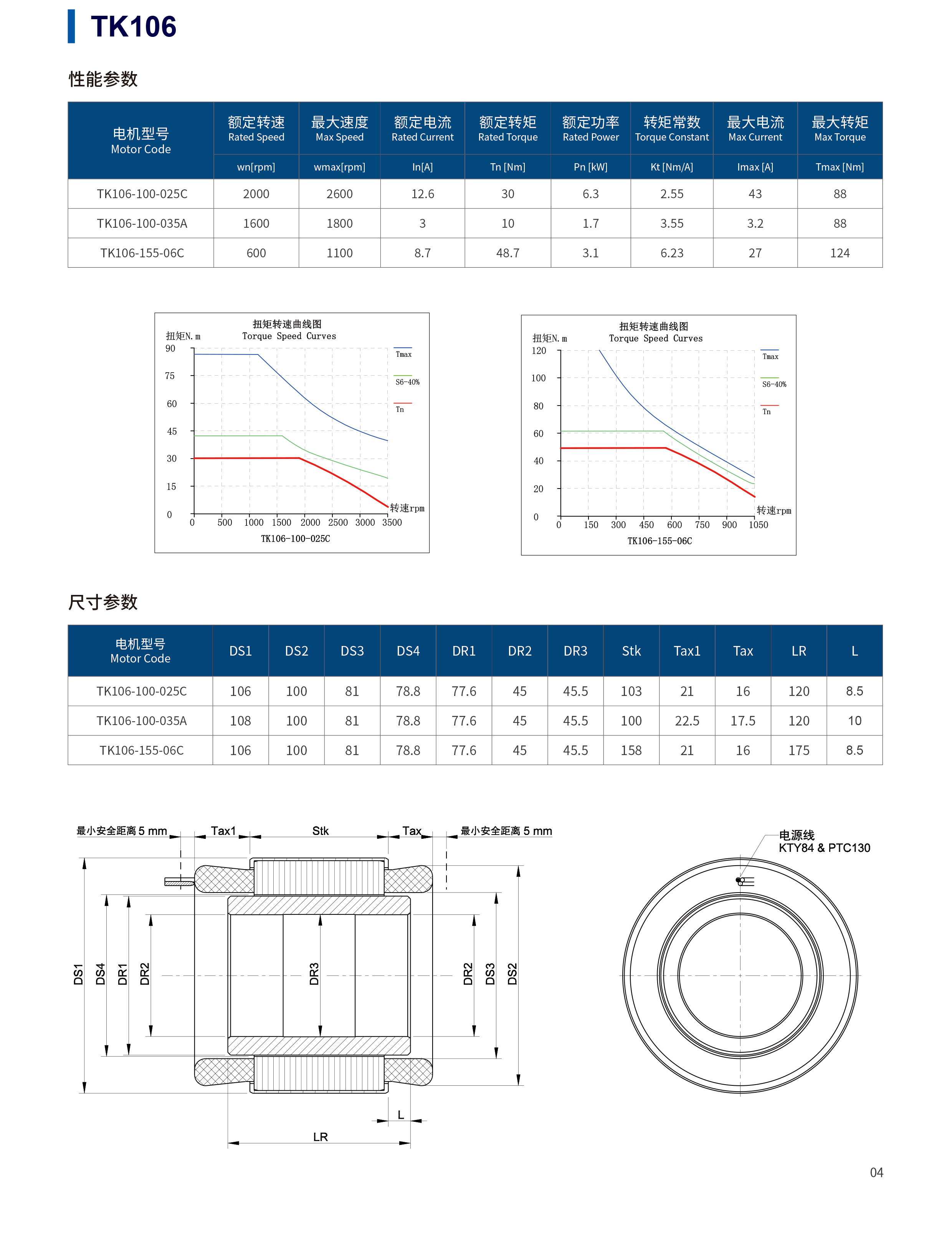

    TK106

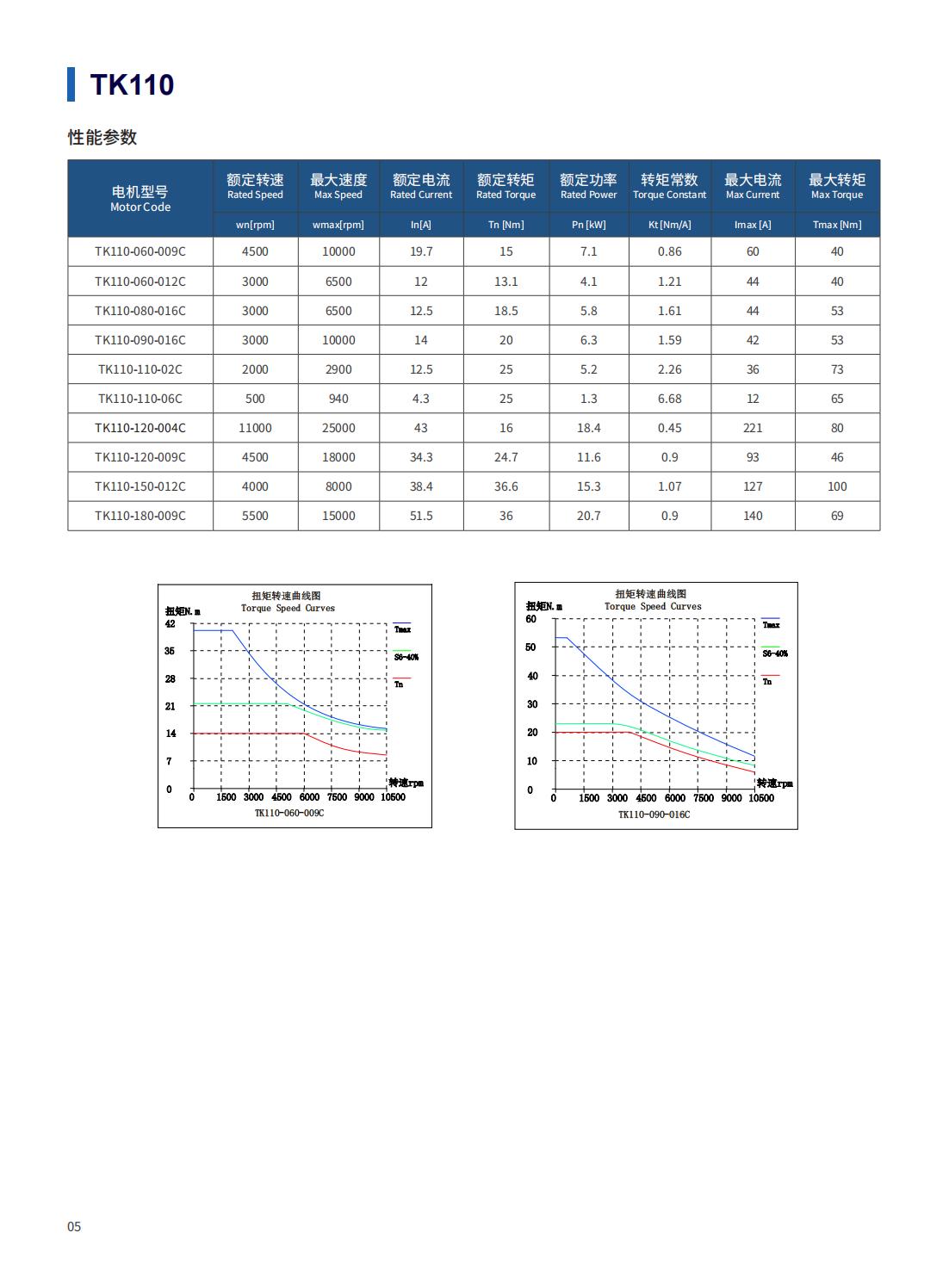

  • TK110
    TK110
  • TK110
    TK110
  • TK142

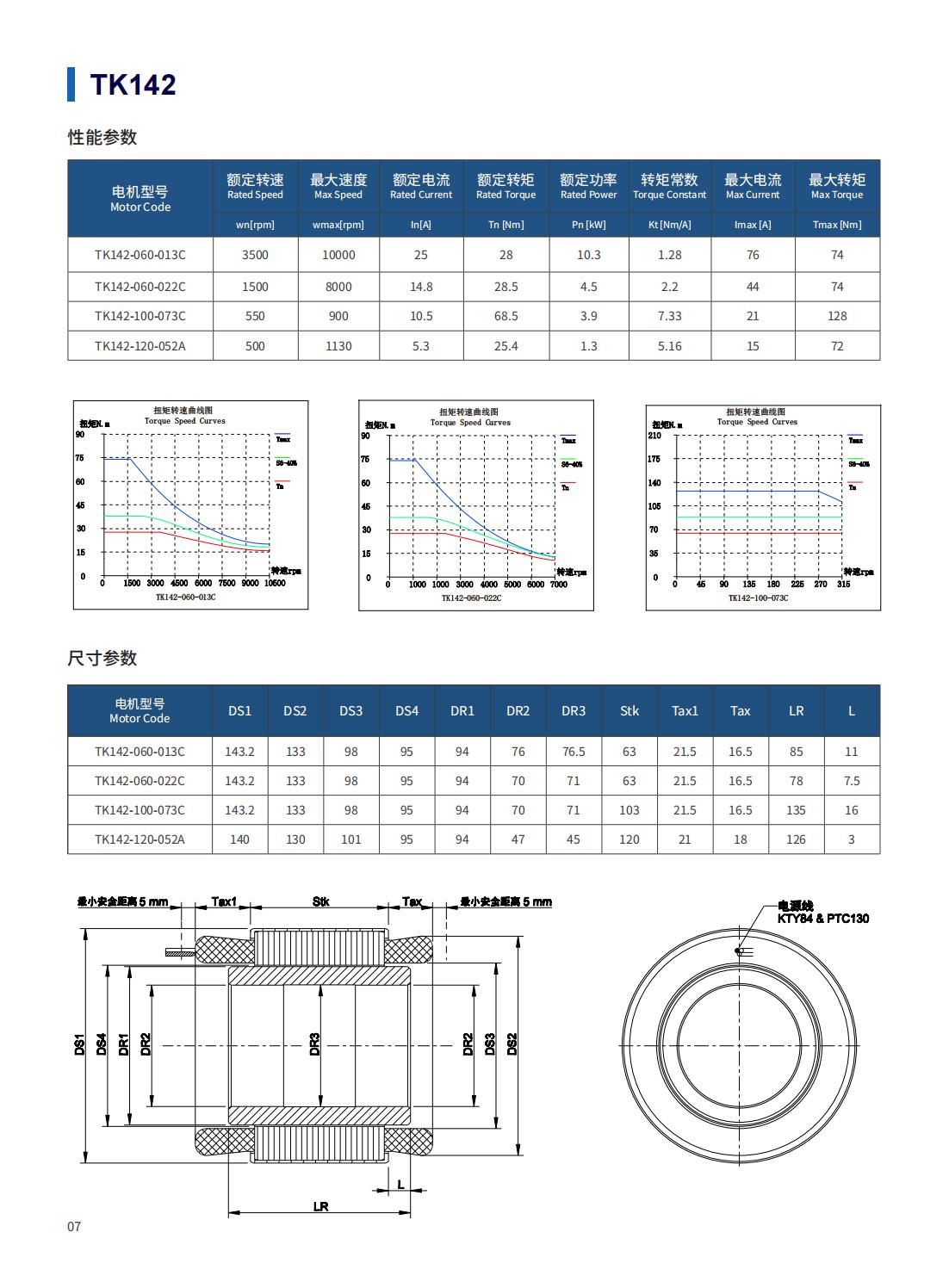

    TK142

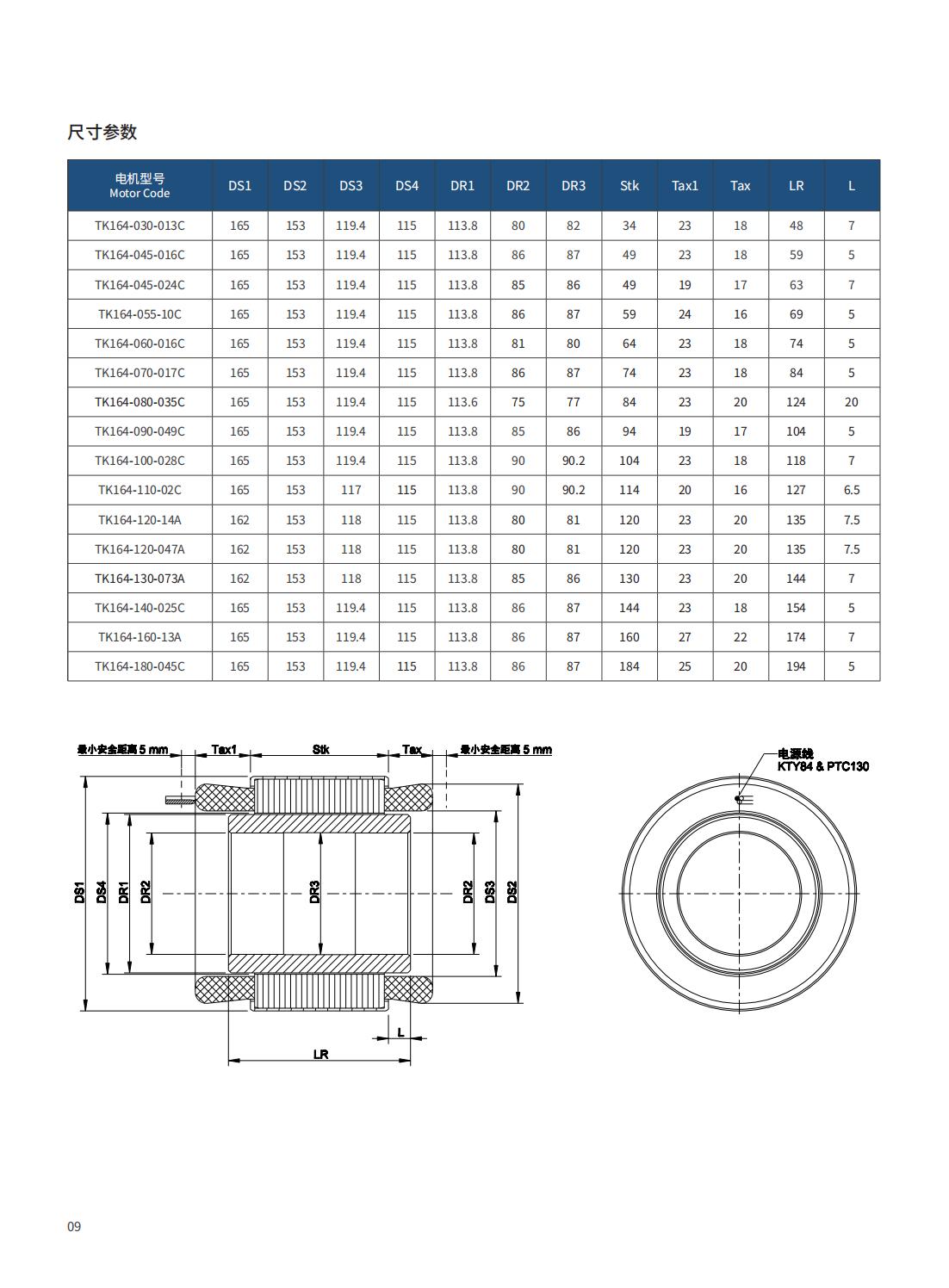

  • TK164

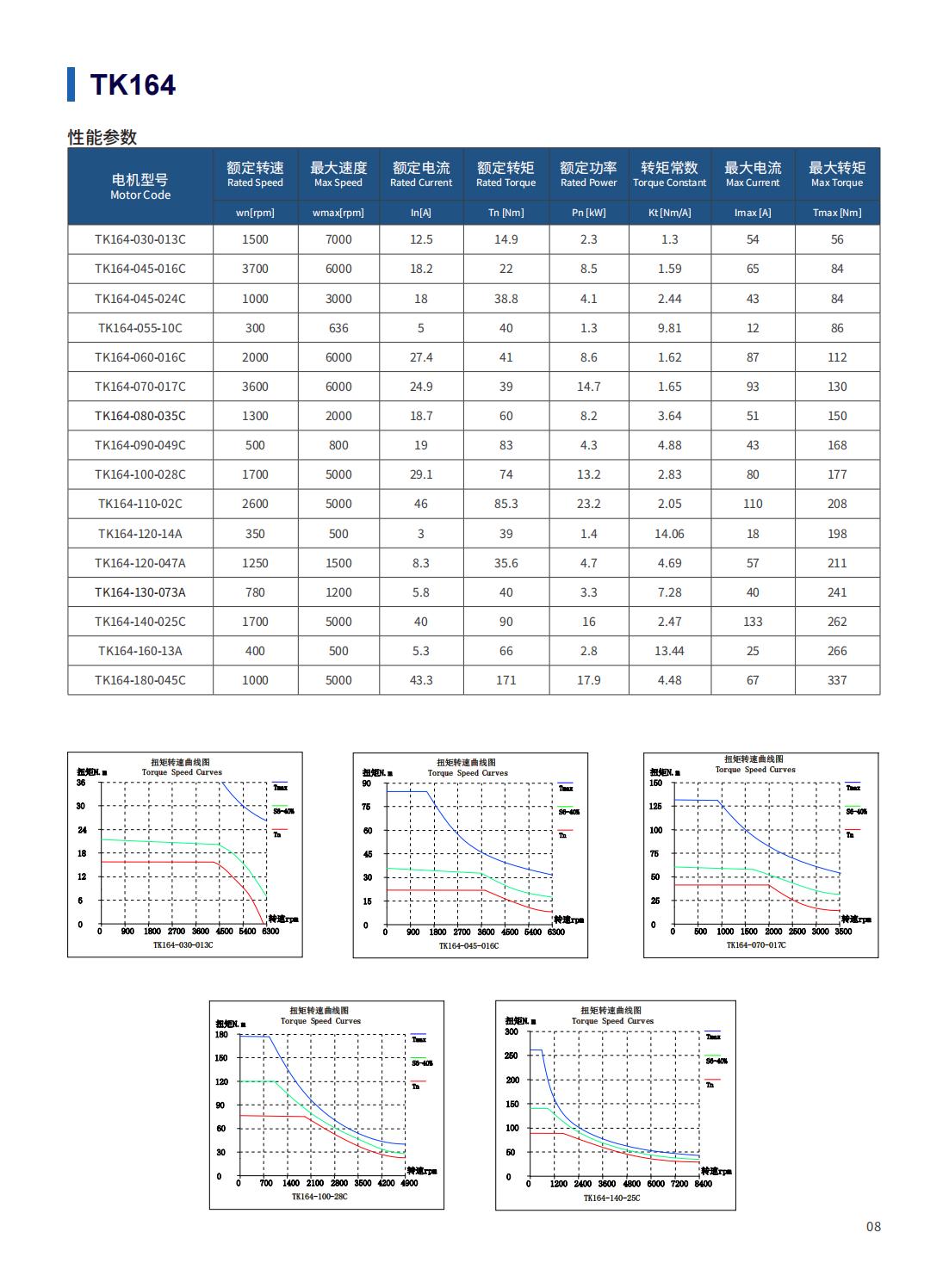

    TK164
  • TK164
    TK164
  • TK172
    TK172
  • TK540

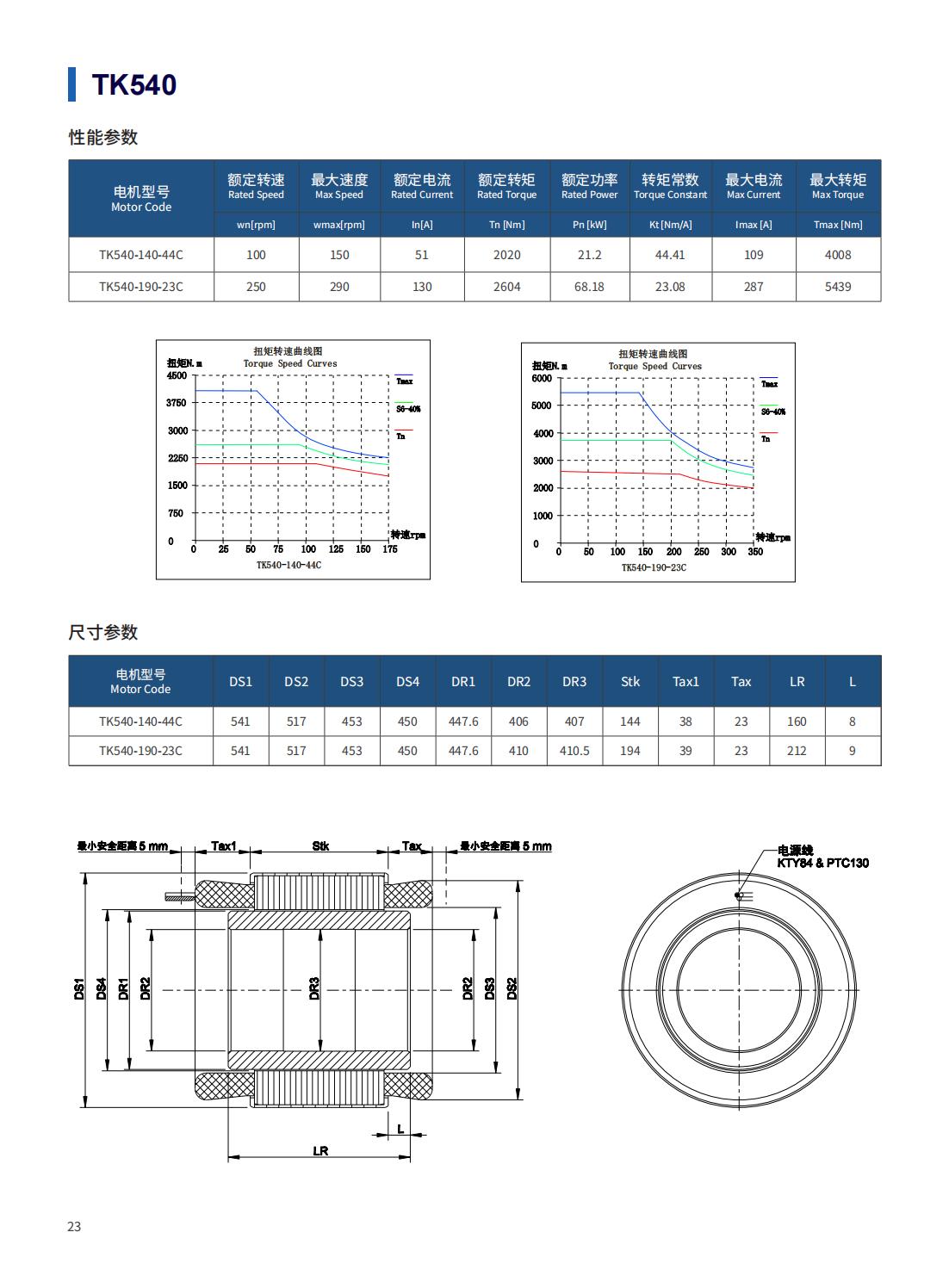

    TK540

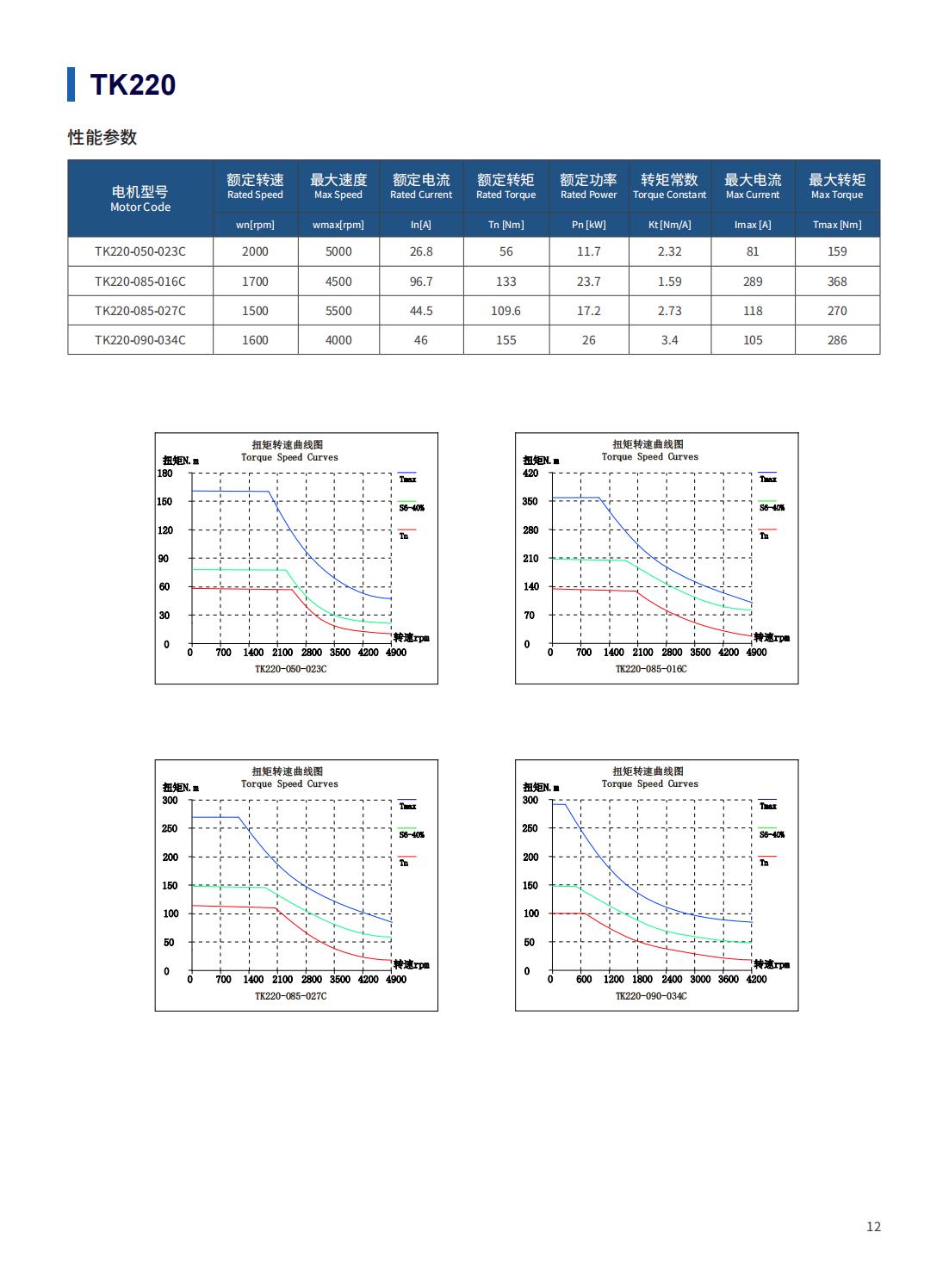

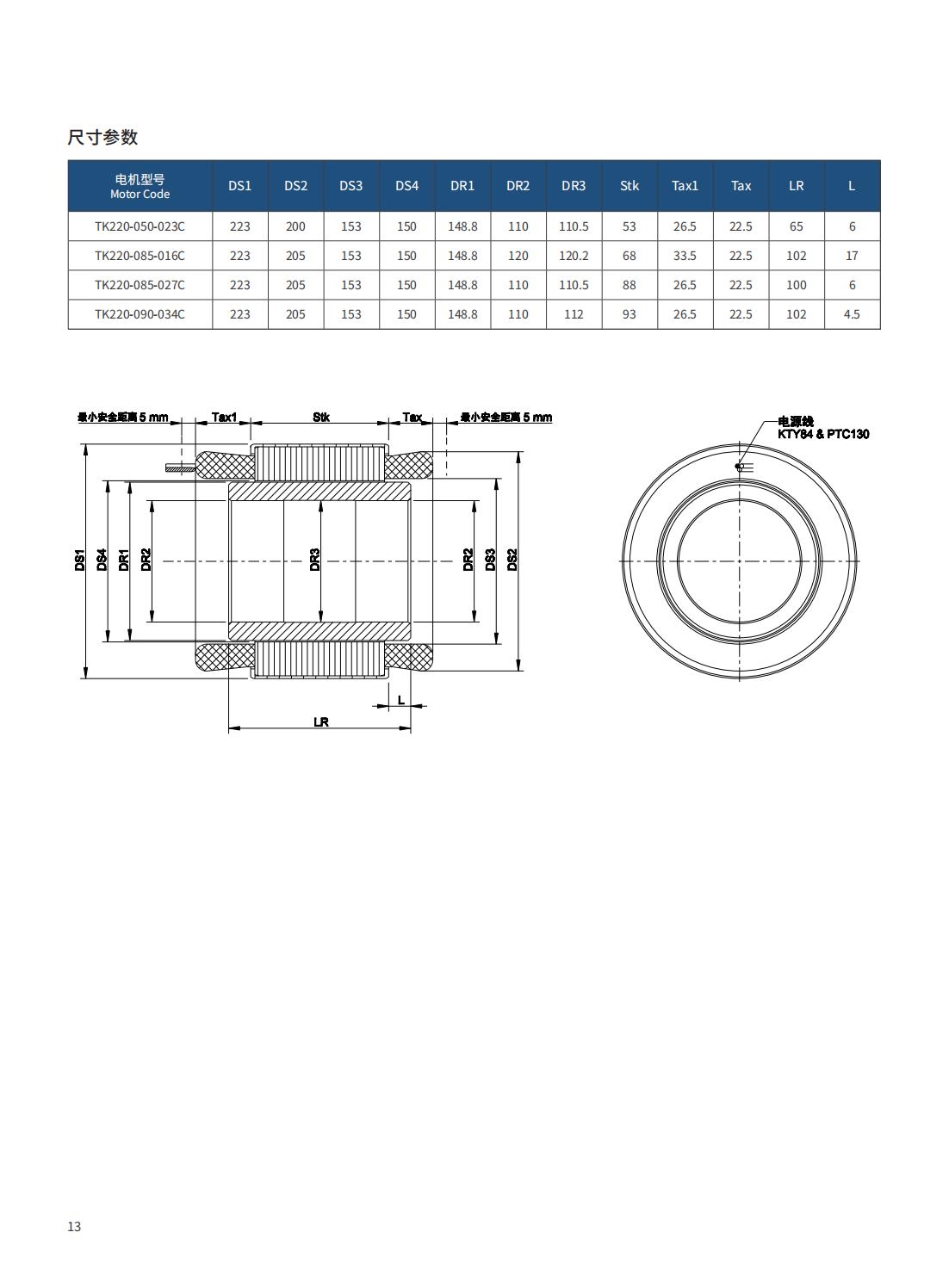

  • TK220
    TK220
  • TK220
    TK220
  • TK370
    TK370

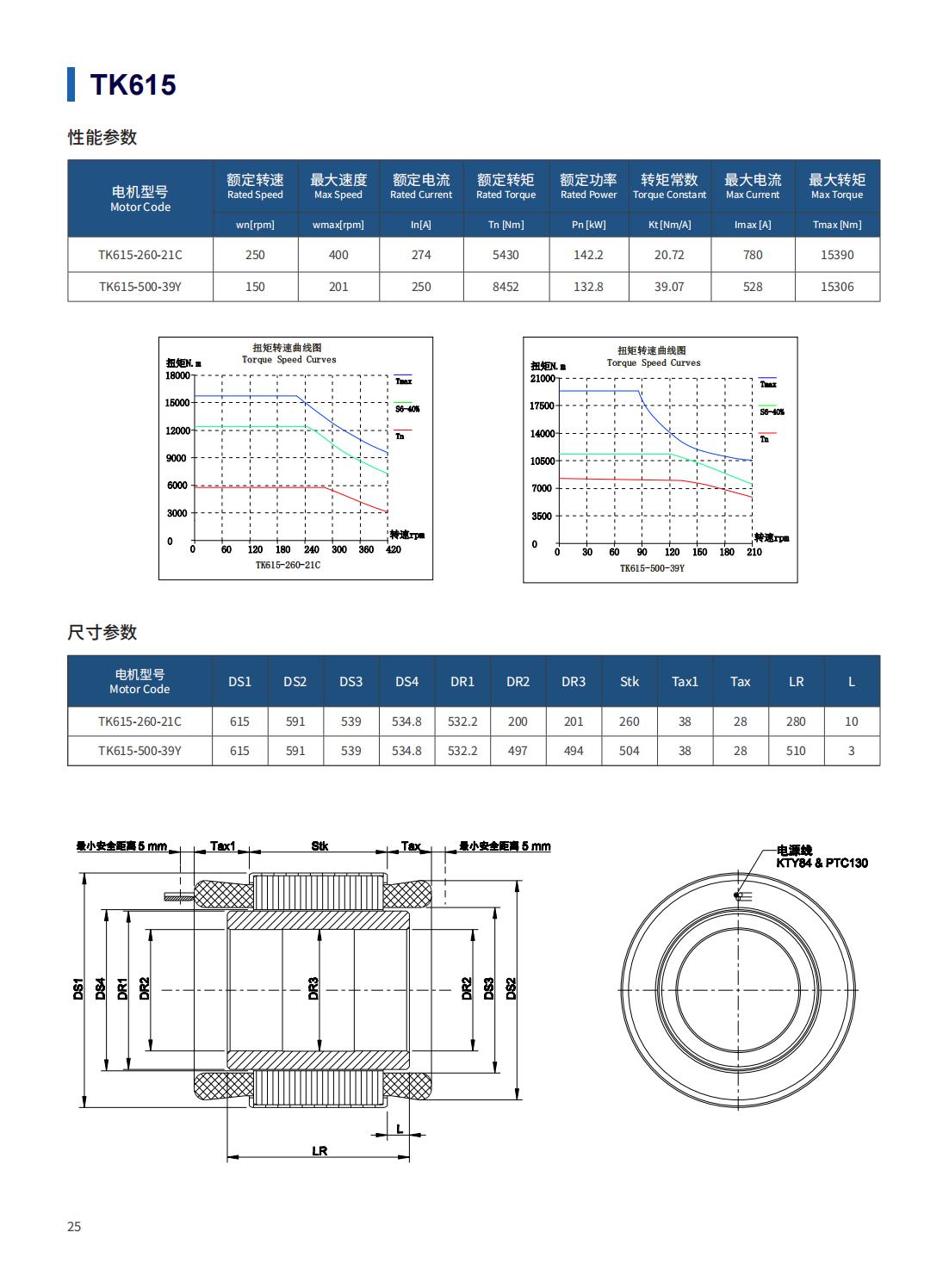

  • TK615
    TK615
  • TK795

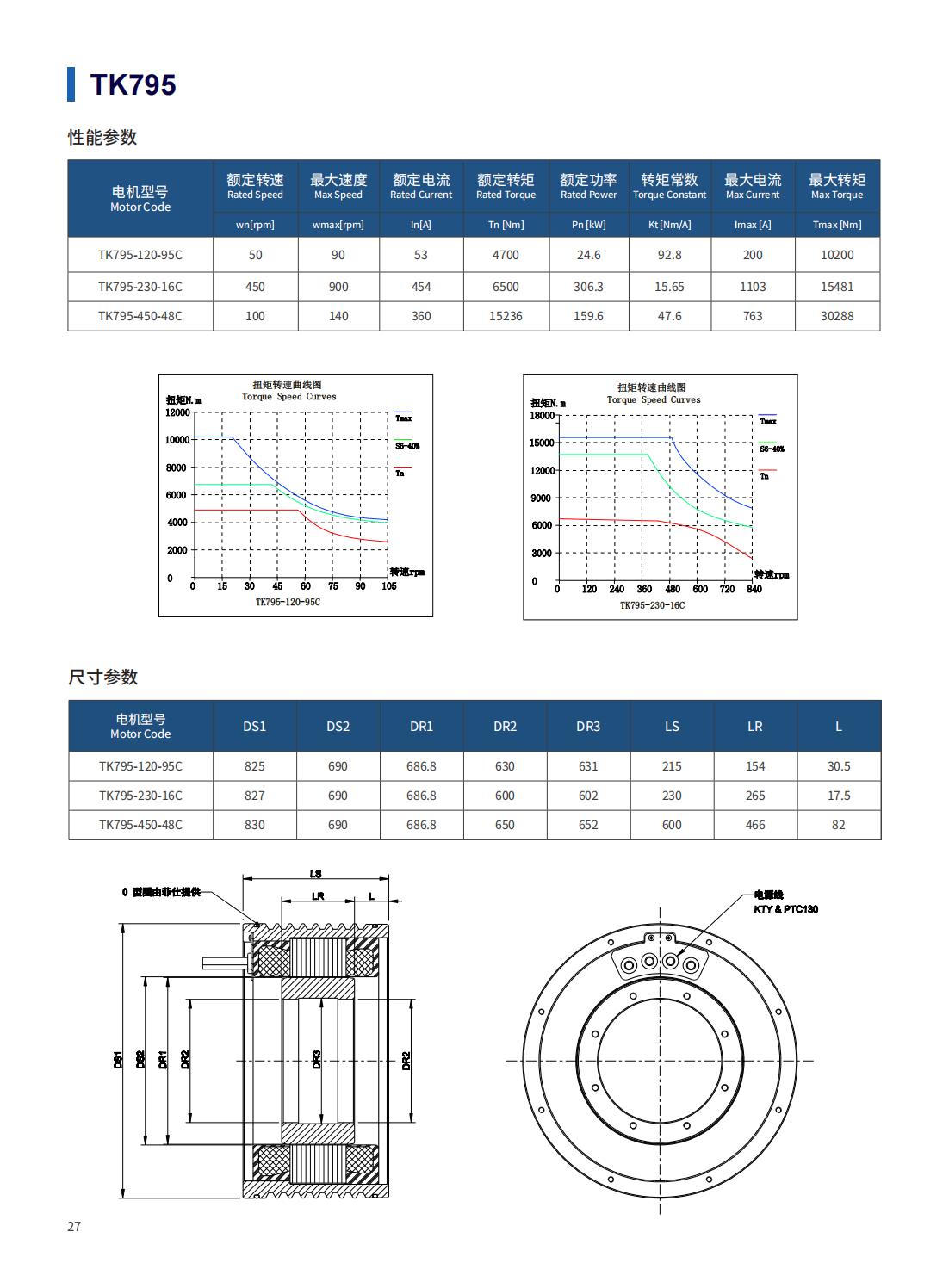

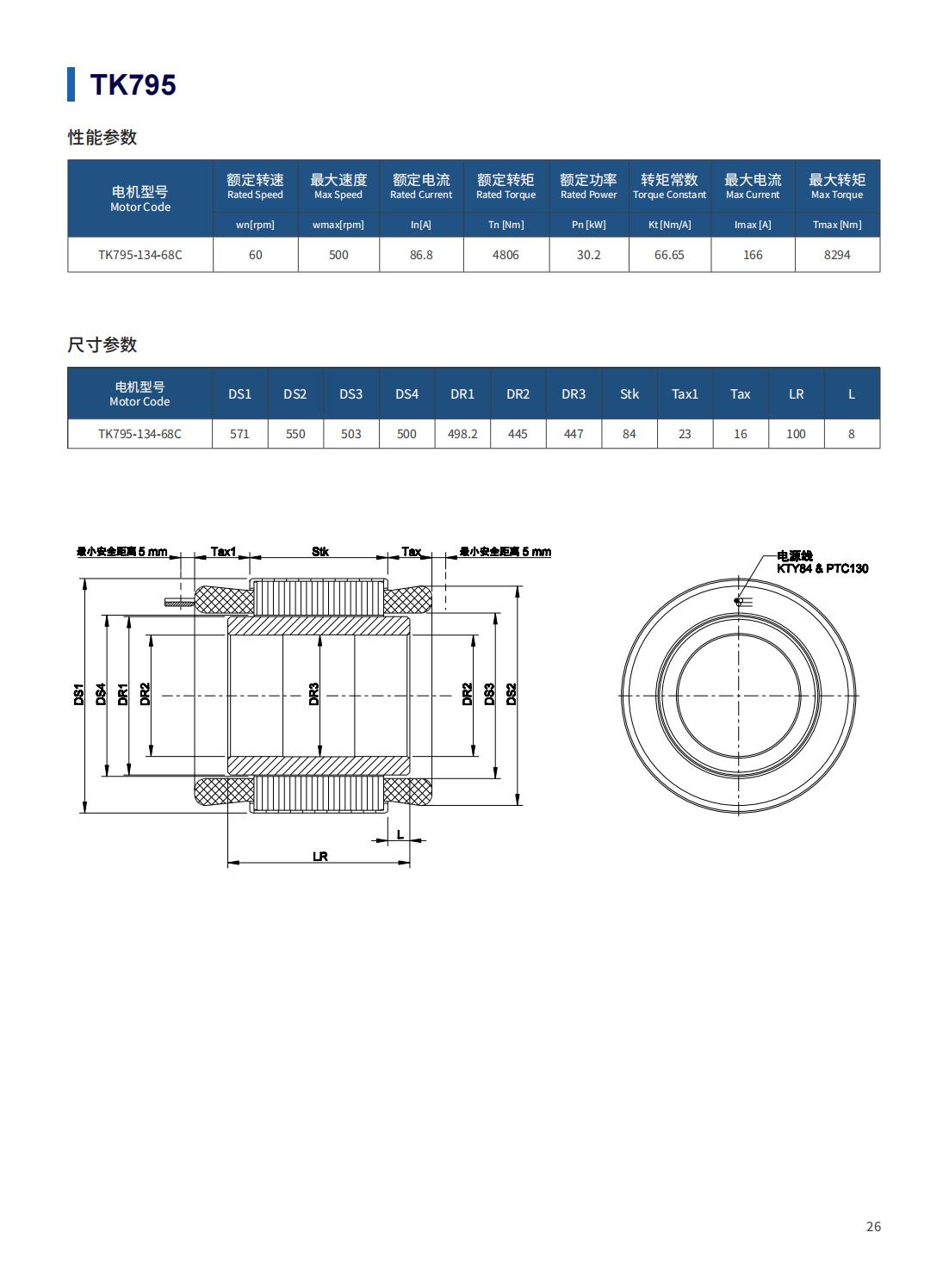

    TK795
  • TK795
    TK795

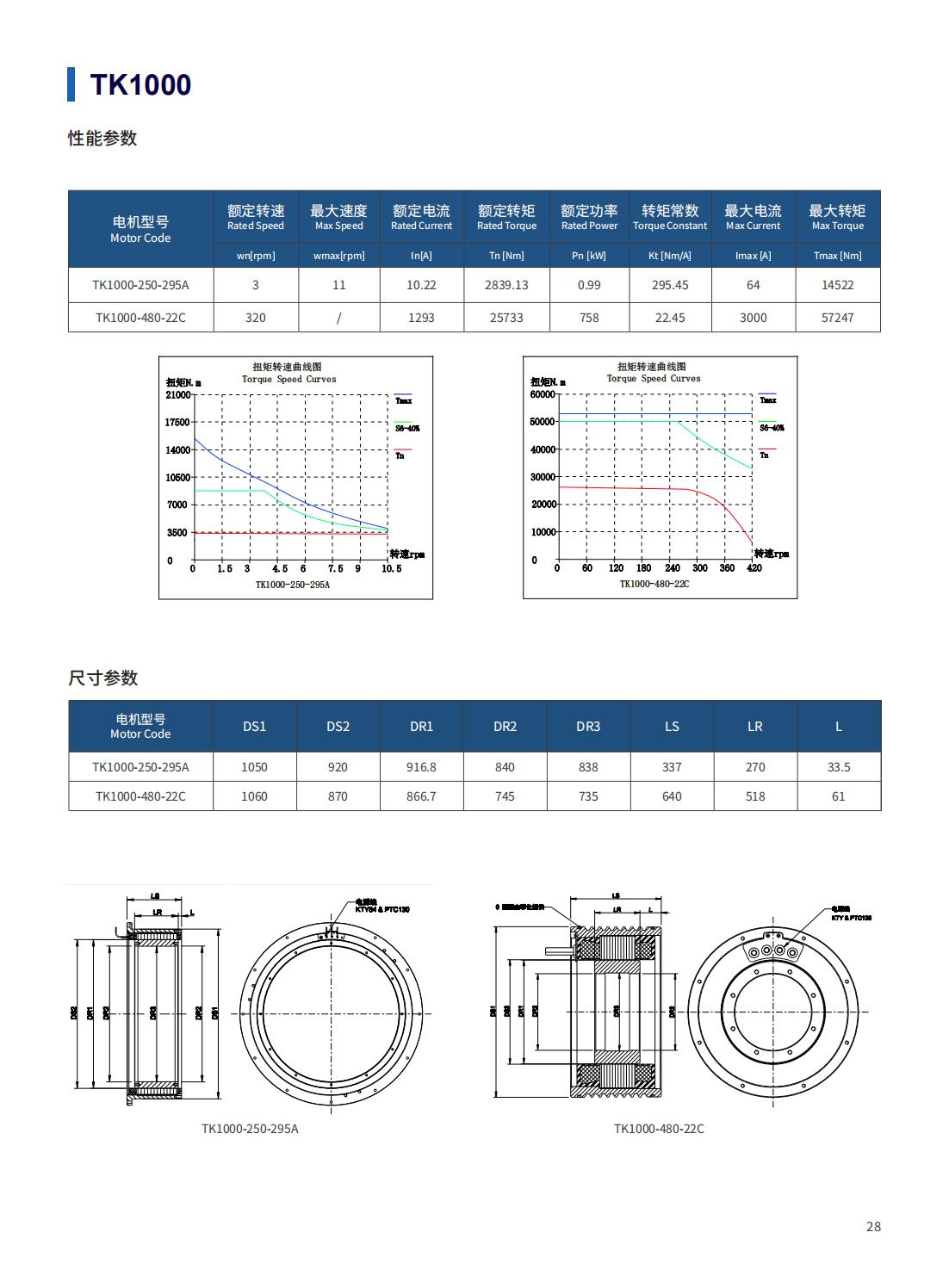

  • TK1000
    TK1000

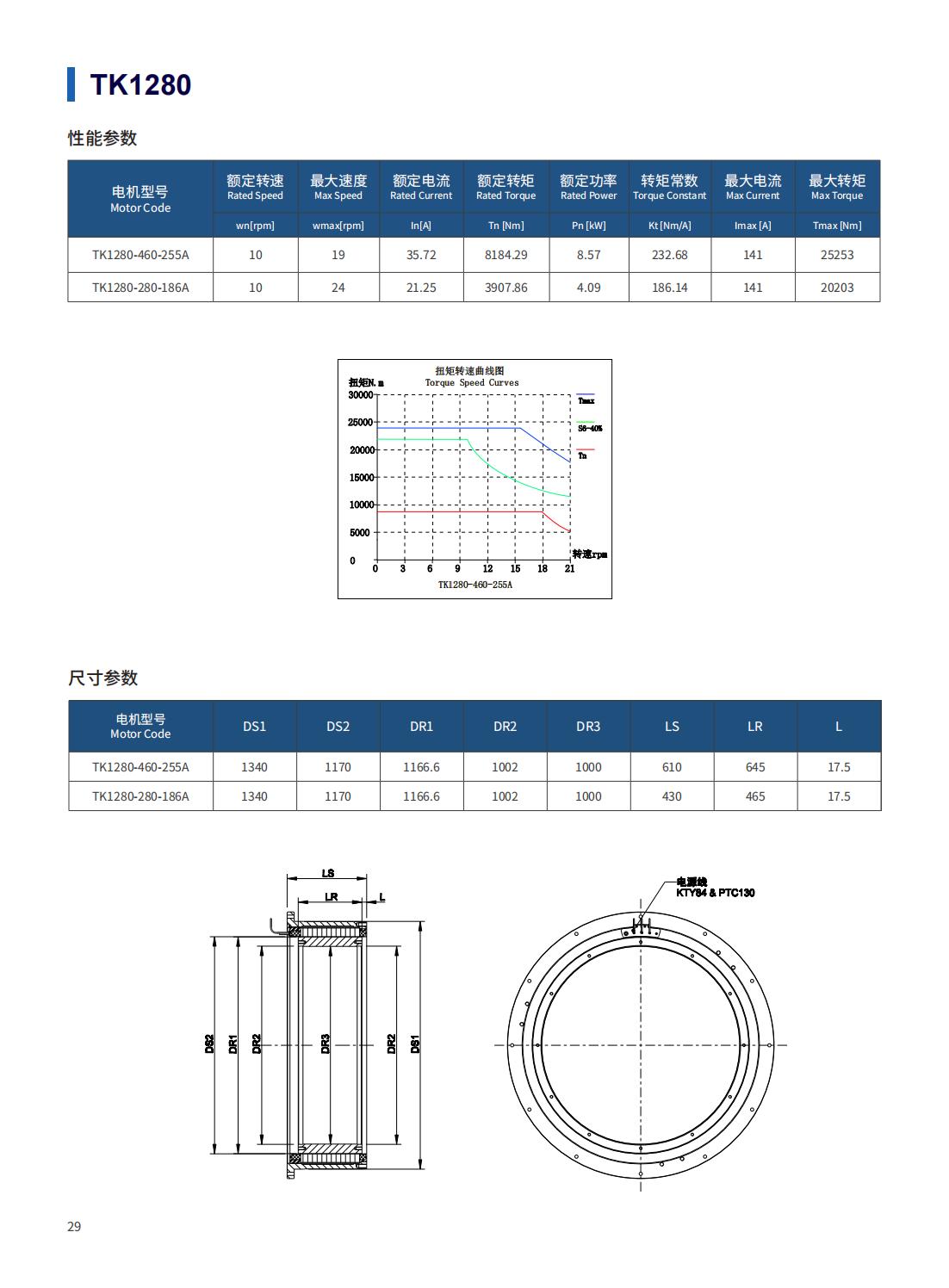

  • TK1280
    TK1280
  • TK1340

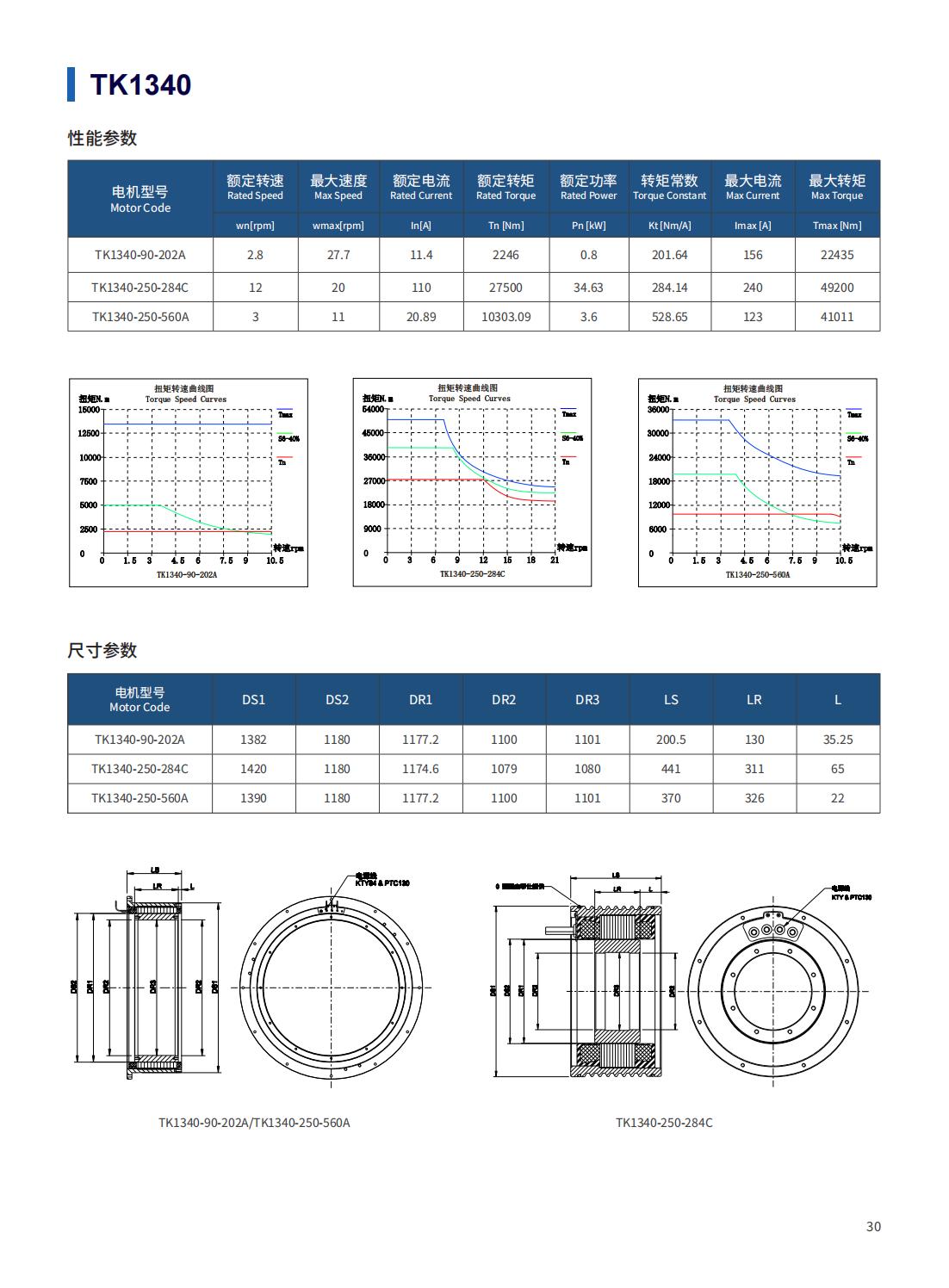

    TK1340
  • TK1700
    TK1700
  • TK Series DD Servo Motors

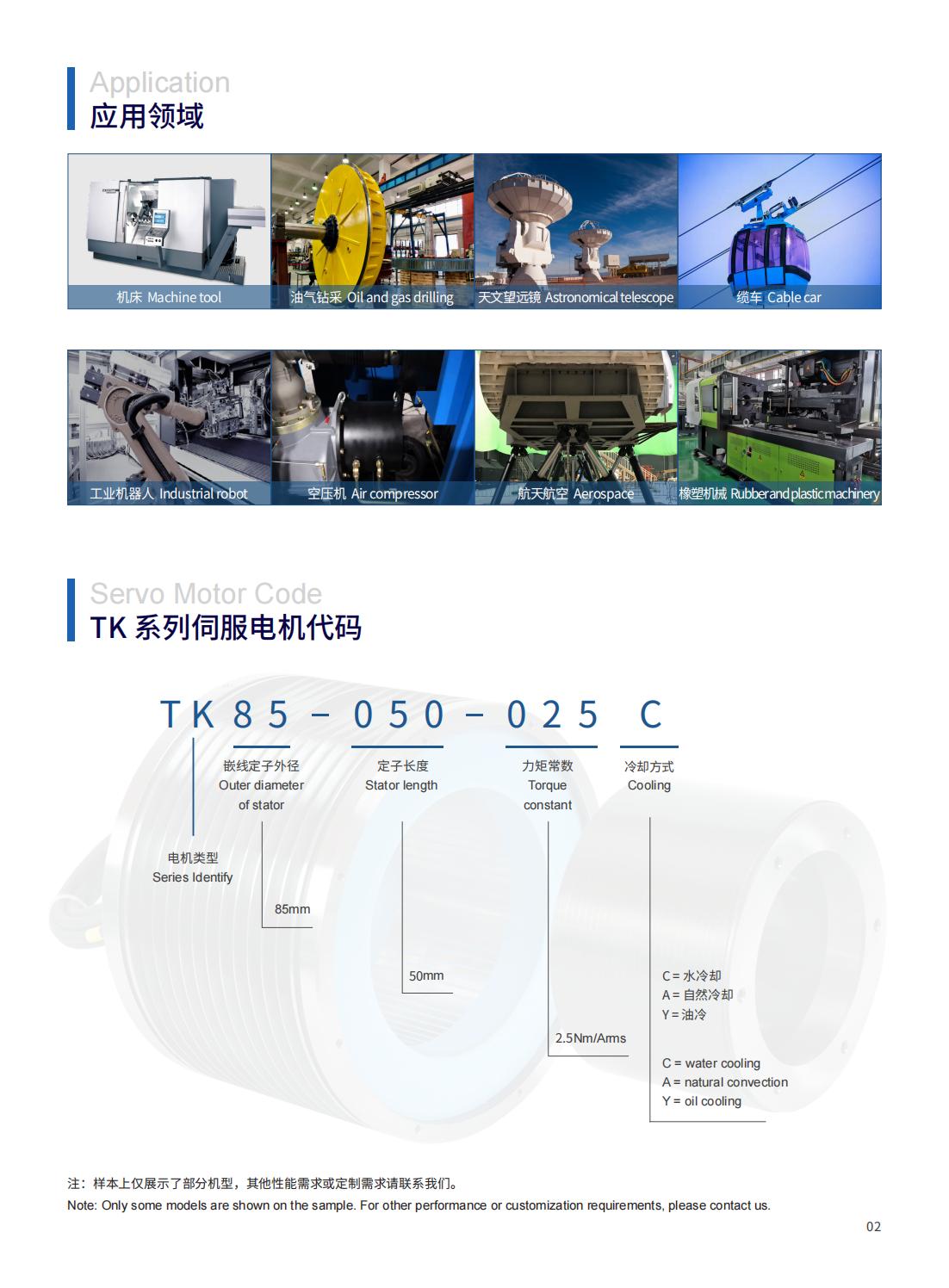

    TK Series DD Servo Motors
  • TK085

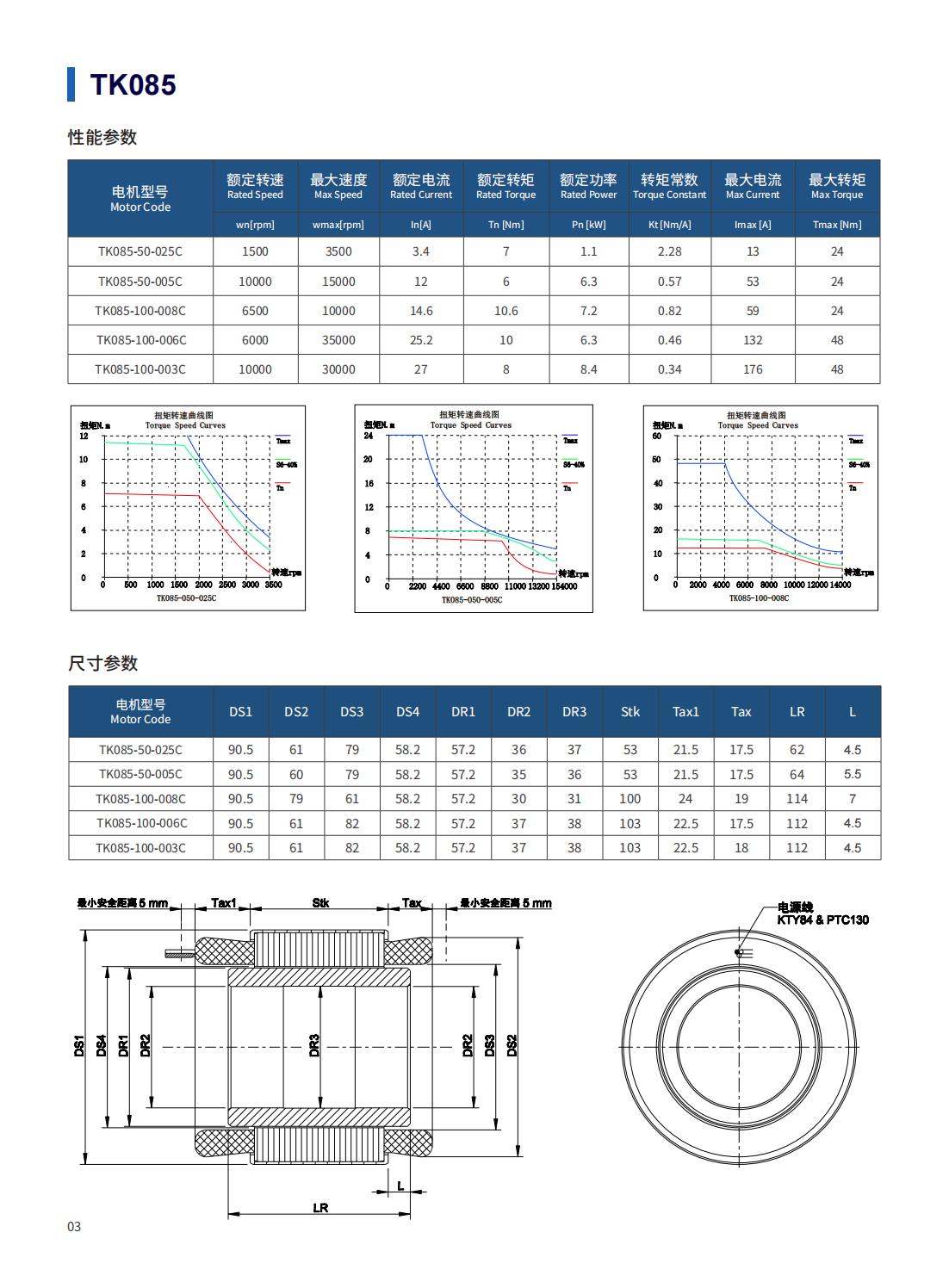

    TK085
