Ningbo Physis Technology Co., Ltd.

PH300 Series
Servo Drive

l Rated Output Power: 7.5kW ~ 450kW

l Maximum Frequency: 0~599Hz

l PWM Frequency: 1KHz~12KHz

l Bus Interface: Standard Modbus, CANopen

l Speed Range: 1:1000 (FVC)

l Cooling Methods: fan cooling

Features

Precise control

Built-in PID control, support closed-loop vector control, V/F control, support various types of PG card

Overload capacity

150% rated current lasts for 60S, 180% rated current lasts for 3S

simplicity of operator

simple structure, small size, easy to install

Low failure rate

Fast current limiting function reduces the probability of frequent driver failure alarm

Protection function

with output phase loss protection, over current/over voltage overload/overheating protection and other functions

Application industry

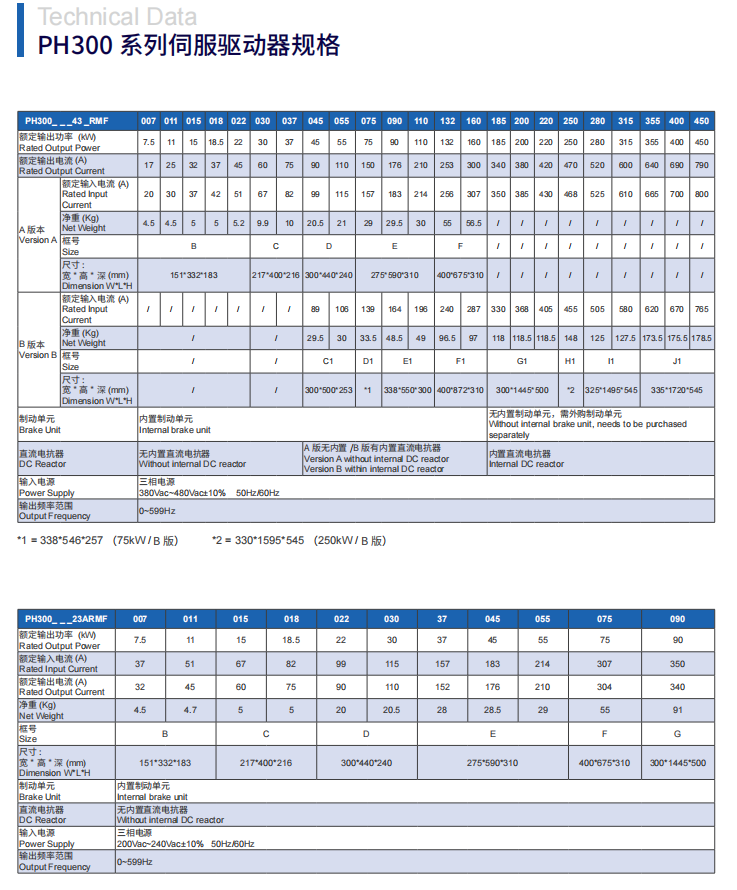

Specifications
