Die-Casting Machines

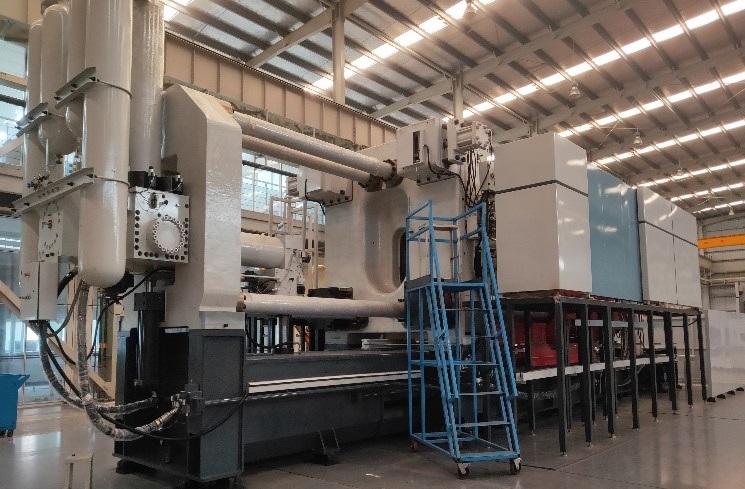

Die-casting machine is used for pressure casting in the industrial manufacturing industry. The molten metal is injected into the mold under high pressure for cooling and molding, solid metal castings are then obtained after mold opening. Die-casting machine is divided into cold- chamber die casting machine and hot- chamber die-casting machines, casting substrate materials of which include aluminum alloy, copper alloy, magnesium alloy, etc. Die-casting machine is used in such industries as automobile, home appliances, 3C, mechanical and electrical tools, building materials, etc. In recent years, a variety of industries adopting die-casting machines have made technological progress and require castings with thin walls and light weight, thus putting forward a higher requirement with regards to the die-casting technology.

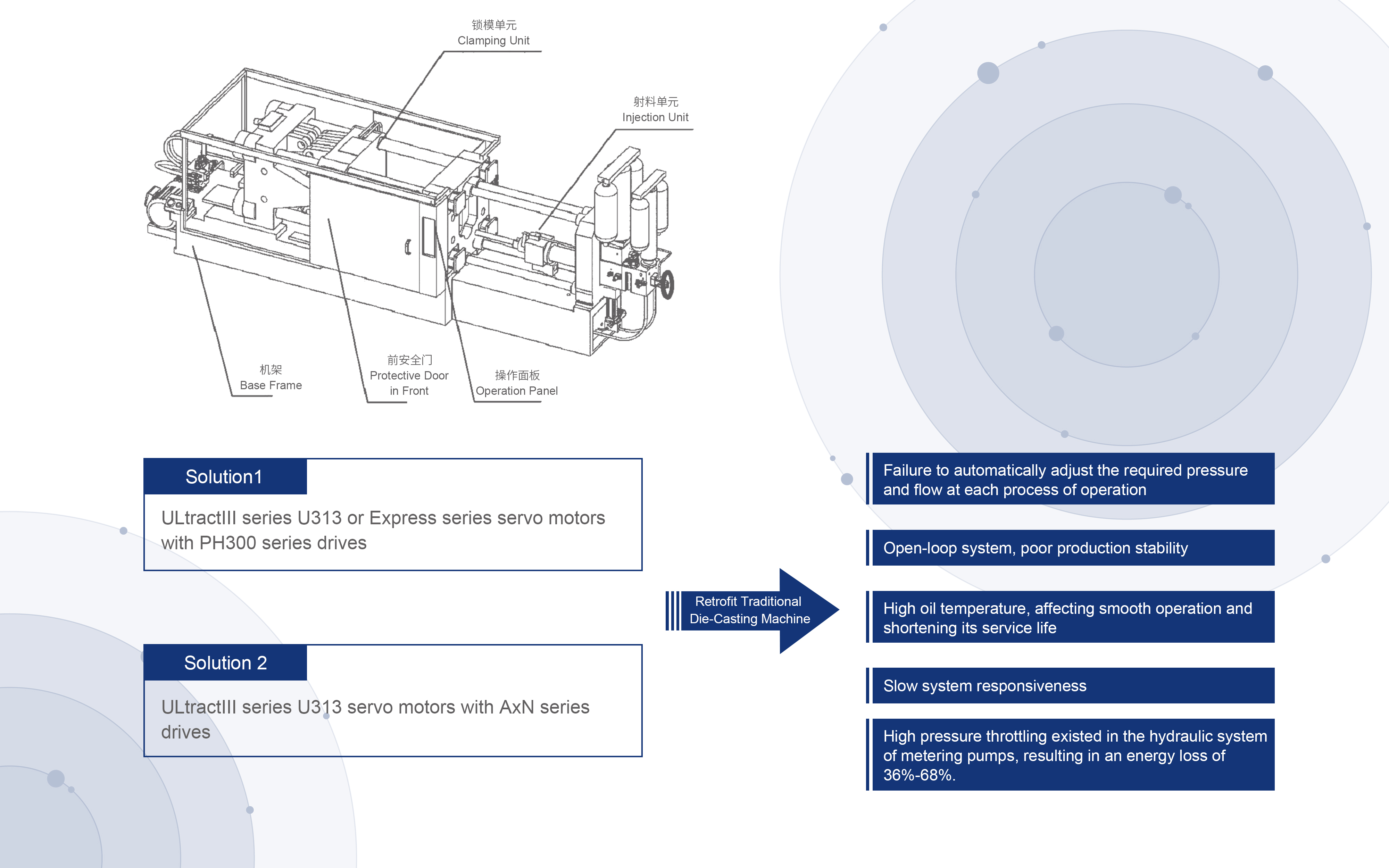

Components: clamping unit, injection unit, hydraulic drive system, etc.

Program overview

传统压铸机对比

Apply Advantage

方案一

High efficiency and energy saving, available to reducing loss of throttling, overflowing and internal leaking, with the energy saving rate up to 45%~85%.

01
Smooth motor starting, with no instantaneous heavy current, little impact on the grid.

02
Automatic adjustment of the system pressure and rotation speed according to process requirements to reduce the working noise, lower the system oil temperature, reduce the oil cooling system loss and prolong the life of the equipment.

03
Multiple protections by the computer and the drive to the system and the motor such as: under-voltage protection, over-voltage protection, over-current protection, over-temperature protection, etc.; available to effectively reduce the failure rate and provide timely feedback of fault information.

04

280T

Equipment Tonnage 280T

Pump Displacement 63cc

System Pressure 160Mpa

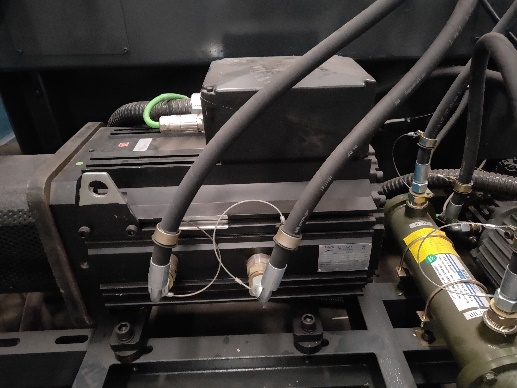

Motor Code U31013Y203

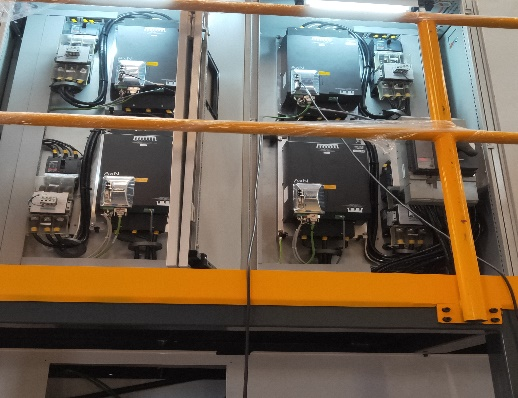

Drive Code AxN50.100.4F000H0000(oil-cooled)
